Brand: Iscar

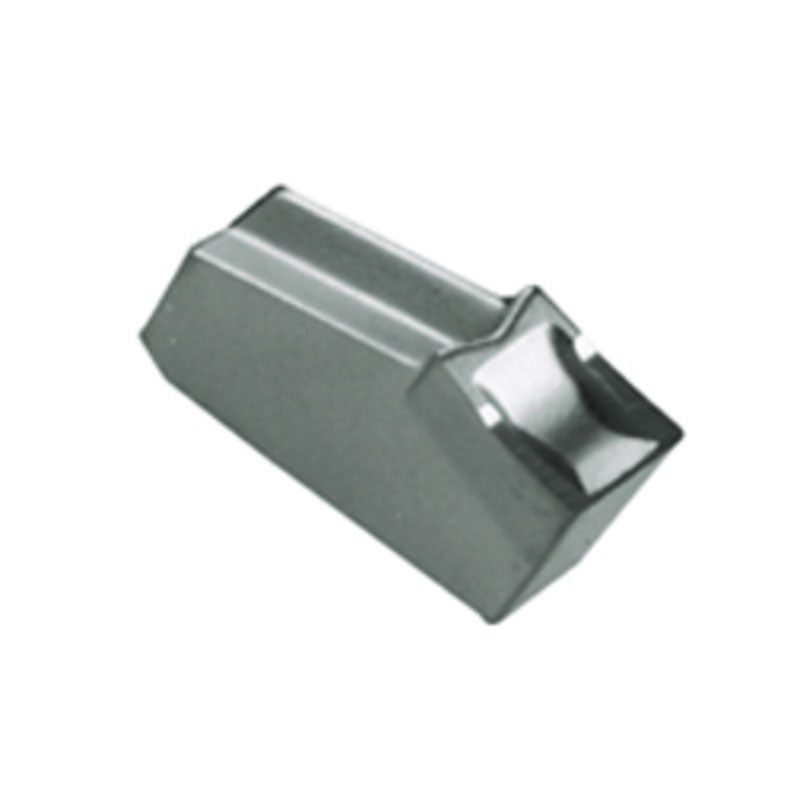

Iscar EH6002691 GFN 4.8W IC354
SKU: FTS-EH6002691
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 6002691 GFN 4.8W IC354Full Description
| Corner Radius (RE) | 0.011" | Application | | Ext. Grooving | Int. Grooving | Parting | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002" | Applicable Material | | Steel | Stainless Steel | |
| Cutting Edge Material | Carbide | Max. Grooving Feed (fg(max)) | 0.0118 "/rev |
| Coating | TiCN | Min. Grooving Feed (fg(min)) | 0.0039 "/rev |
| Grade | IC354 | Tool Type | Parting & Grooving Inserts |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
Family Description
Parting & grooving single-sided insert. W-type chipformer, with a central ridge that forms double cavities on the rake face. Most efficient on alloy steel.
