Brand: Iscar

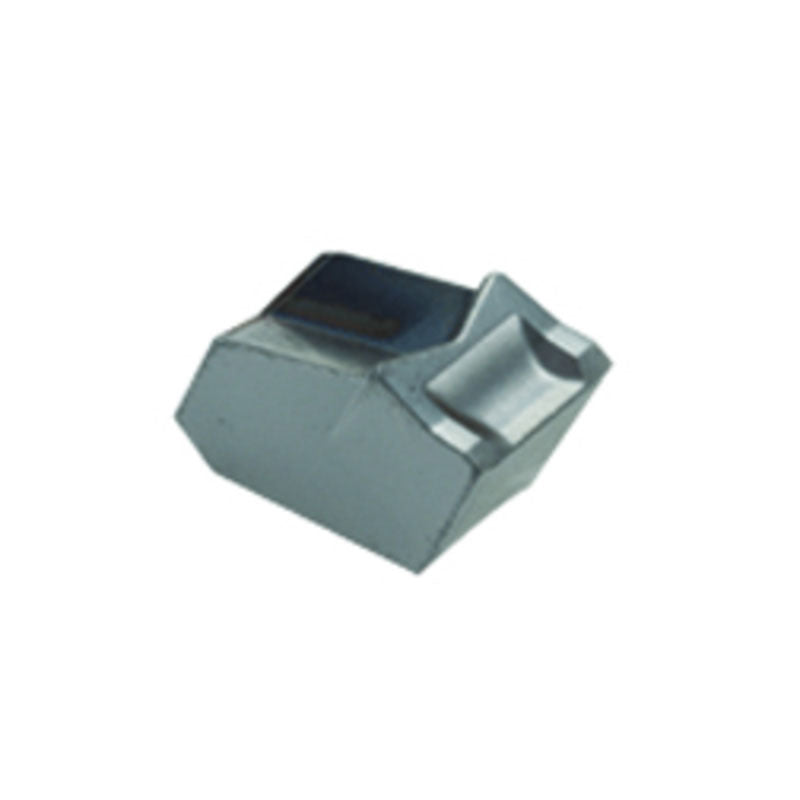

Iscar EH6000237 GFN 3A IC20
SKU: FTS-EH6000237
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 6000237 GFN 3A IC20Full Description
| Corner Radius (RE) | 0.0079" | Application | | Ext. Grooving | Int. Grooving | Parting | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002" | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Cutting Edge Material | Carbide | Max. Grooving Feed (fg(max)) | 0.0059 "/rev |
| Coating | Uncoated | Min. Grooving Feed (fg(min)) | 0.002 "/rev |
| Grade | IC20 | Tool Type | Parting & Grooving Inserts |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
Family Description
First choice for the parting of aluminum bars. A positive rake and sharp cutting edge.
