Brand: Iscar

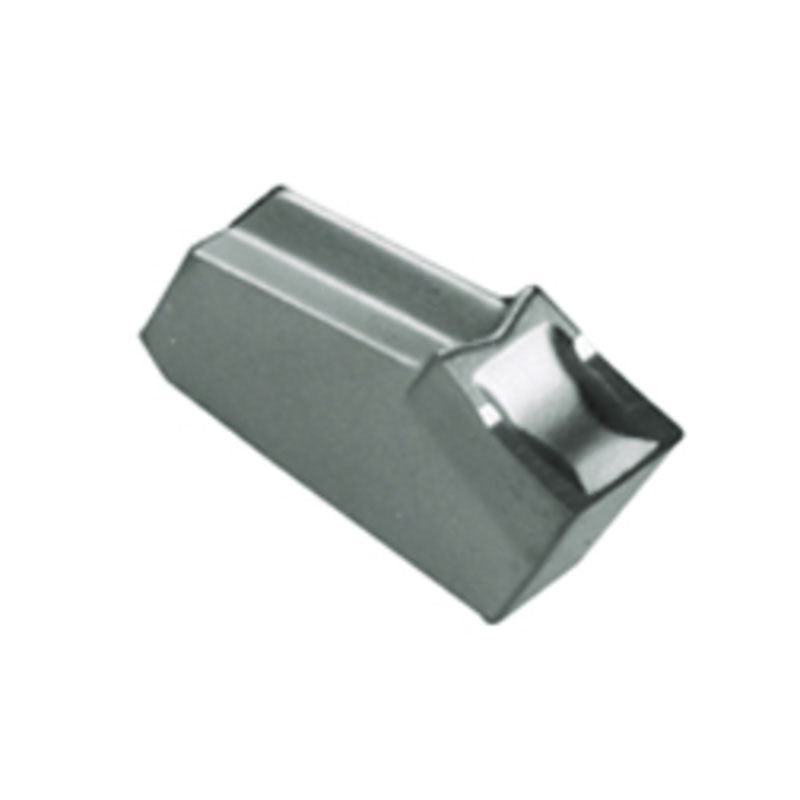

Iscar EH6002686 GFL 3W - 8D IC354
SKU: FTS-EH6002686
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 6002686 GFL 3W - 8D IC354Full Description
| Cutting Width (CW) | 0.118" | Application | | Parting | |
| Corner Radius (RE) | 0.0079" | Applicable Material | | Steel | Stainless Steel | |
| Cutting Edge Material | Carbide | Max. Grooving Feed (fg(max)) | 0 "/rev |
| Coating | TiCN | Min. Grooving Feed (fg(min)) | 0 "/rev |
| Grade | IC354 | Tool Type | Parting & Grooving Inserts |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Body Material | Carbide |
Family Description
Parting and grooving, single-ended insert. W-type chipformer with a central ridge that forms double cavities on the rake face. Most efficient on alloy and stainless steel.
