Brand: Iscar

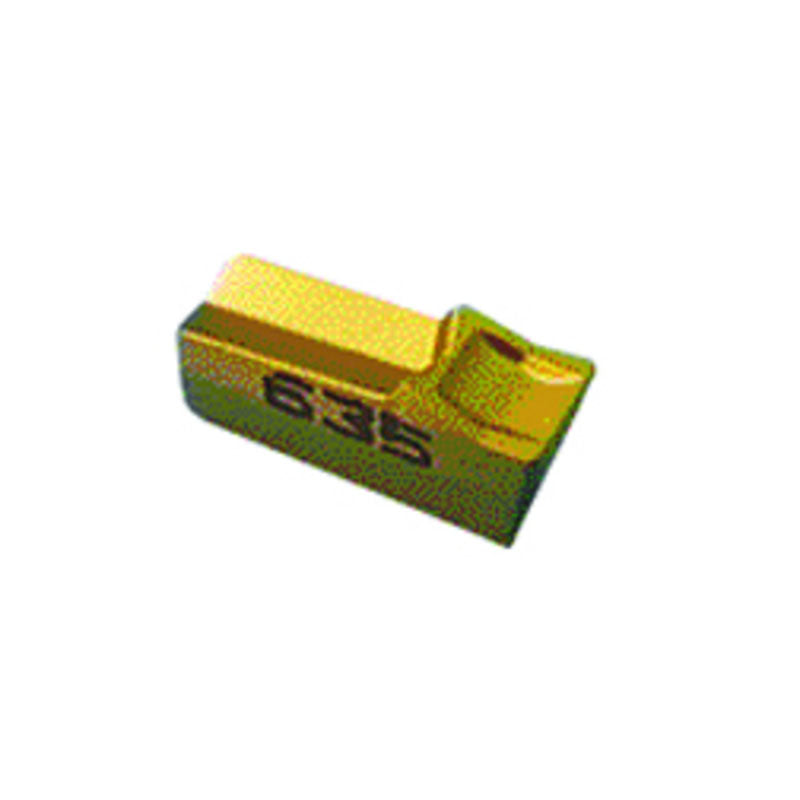

Iscar EH6000029 GFF 4N IC656
SKU: FTS-EH6000029
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 6000029 GFF 4N IC656Full Description
| Cutting Width (CW) | 0.157" | Axial Groove Outside Diameter Minimum (DAXN) | 1.38" |
| Corner Radius (RE) | 0.01" | Max. Face Grooving Feed (ffg(max)) | 0.0071 "/rev |
| Shape | 90° Rectangular | Min. Face Grooving Feed (ffg(min)) | 0.0016 "/rev |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Inch |
| Grade | IC656 | Coating | TiCN+TiC+TiN |
| Application | | Face Grooving | Face Grooving Along Shaft | | Body Material | Carbide |
| Tool Type | Face Turn-Groove Inserts |
Family Description
SELF-GRIP face grooving inserts.
Grooving depth is limited only by the tool being used
