Brand: Iscar

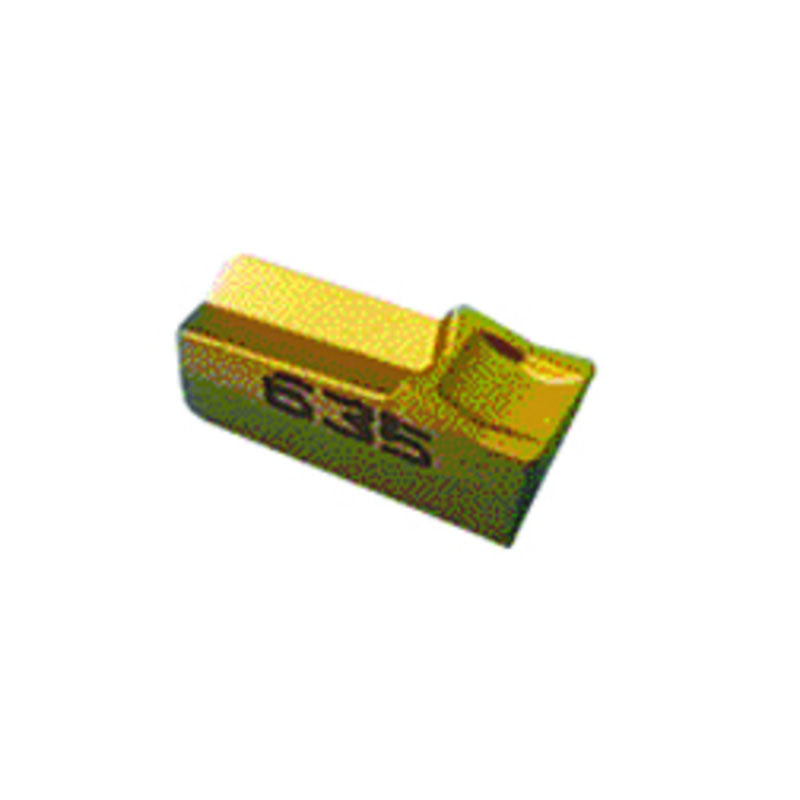

Iscar EH6000025 GFF 3R IC656
SKU: FTS-EH6000025
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 6000025 GFF 3R IC656Full Description
| Cutting Width (CW) | 0.118" | Axial Groove Outside Diameter Maximum (DAXX) | 2.17" |
| Corner Radius (RE) | 0.012" | Axial Groove Outside Diameter Minimum (DAXN) | 1.18" |
| Shape | 90° Rectangular | Max. Face Grooving Feed (ffg(max)) | 0.0059 "/rev |
| Cutting Edge Material | Carbide | Min. Face Grooving Feed (ffg(min)) | 0.0012 "/rev |
| Applicable Material | | Steel | Stainless Steel | | Coolant Supply Property (CSP) | External |
| Grade | IC656 | Measurement Type | Inch |
| Application | | Face Grooving | Face Grooving Along Shaft | | Coating | TiCN+TiC+TiN |
| Tool Type | Face Turn-Groove Inserts | Body Material | Carbide |
Family Description
SELF-GRIP face grooving inserts.
