Brand: Iscar

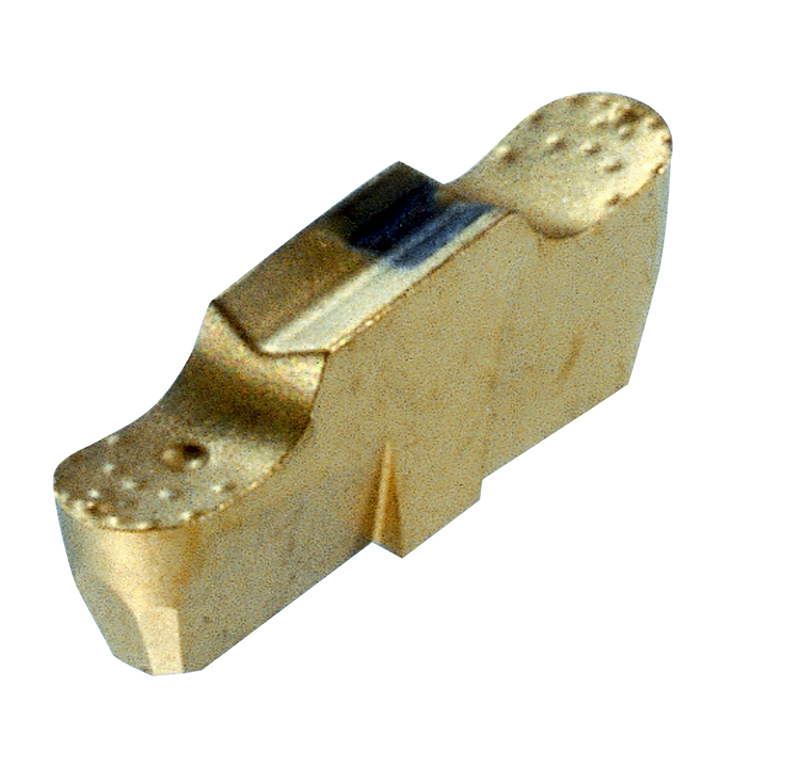

Iscar EH6403369 GEPI 2.39-0.10 IC528
SKU: FTS-EH6403369
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 6403369 GEPI 2.39-0.10 IC528Full Description
| Cutting Width (CW) | 0.094" | Shape | 90° Rectangular |
| Corner Radius (RE) | 0.004" | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.354" | Application | | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | |
| Clearance Angle Major (AN) | 8 Degrees | Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Insert Length (INSL) | 0.394" | Cutting Position | External |
| Minimum Bore Diameter (DMIN) | 0.453" | Measurement Type | Inch |
| Feed | 0.0035 inch/rev | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC528 |
Family Description
Precision double-ended inserts, for internal and external grooving at low feeds in diameters from .453".
DMIN for internal application=.453"
