Brand: Iscar

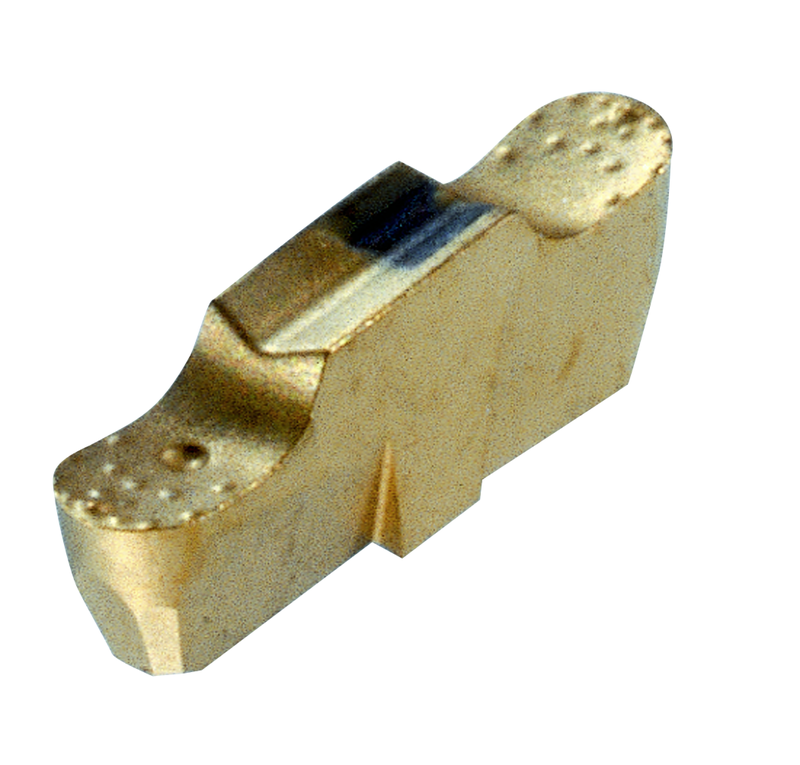

Iscar EH6403345 GEPI 1.57-0.15 IC908
SKU: FTS-EH6403345
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 6403345 GEPI 1.57-0.15 IC908Full Description
| Corner Radius (RE) | 0.0059" | Shape | 90° Rectangular |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012" | Application | | Int. Grooving (side limit) | |
| Overall Length (OAL) | 0.394" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Insert Length (INSL) | 0.394" | Max. Grooving Feed (fg(max)) | 0.002 "/rev |
| Cutting Depth Maximum (CDX) | 0.079" | Min. Grooving Feed (fg(min)) | 0.0008 "/rev |
| Cutting Edge Material | Carbide | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
Family Description
Precision double-ended inserts, used for internal grooving at low feeds in diameters from .453"
Toolholder seat needs to be modified according to insert profile to ensure clearance DMIN for internal application=.453"
