Brand: Guhring

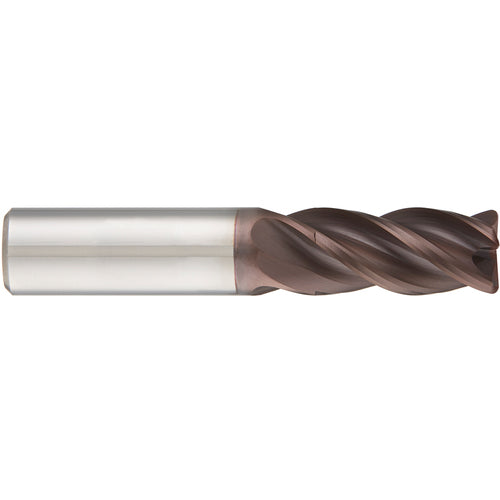

Guhring GD1667590158740 5/8" × 5/8" × 1-1/4" × 3-1/2" 4 Flute 0.0310" Radius Carbide End Mill-nano-Si
SKU: FTS-GD1667590158740
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Guhring 5/8" x 5/8" x 1-1/4" x 3-1/2" 4 Flute 0.0310" Radius Carbide End Mill-nano-Si GD1667590158740Full Description
| Cutting Diameter (DC) | 5/8" | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/8" | Corner Radius (RE) | 0.031" |
| Depth of Cut Maximum (APMX) | 1-1/4" | Length Group | Standard |
| Overall Length (OAL) | 3-1/2" | Decimal Equivalent | 0.625" |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | nano-Si | Series/List # | 6759 |
| Flute Count (NOF) | 4 | Package Height | 1.20000 |
| Flute Helix Angle (FHA) | Variable | Corner Radius (RE) / Chamfer Width (CHW) | 0.031" |
• nano-Si coating • Variable helix • Face geometry for drilling and ramping • Plunge angle up to 45 • High feed rate for plunging and slotting • High metal removal rate • Up to 100% increased cutting speed in steel • Good for use with aluminum, alloyed steels, free cutting steels, tool steels, stainless steels, titanium and titanium alloys, cast iron, special alloys
