Brand: Guhring

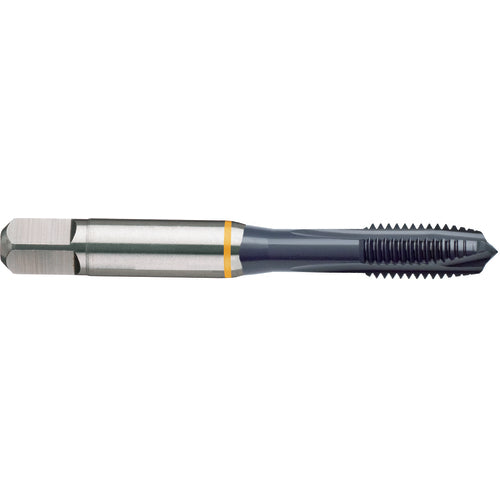

Guhring GD1544160180000 M18X2.50 D7 PLUG TAP-TICN COB
SKU: FTS-GD1544160180000
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
GD1544160180000 M18X2.50 D7 PLUG TAP-TICN COBFull Description
| Thread Standard | Metric | Cutting Edge Material | HSS-E |
| Thread Size | M18 × 2.5 | Tool Type | Spiral Point |
| Thread Diameter Size (TDZ) | M18 | Connection Diameter Machine Side (DCONMS) | 0.542" |
| Thread Pitch (TP) | 2.5 mm | Thread Cutting Part Length (THL) | 1.181" |
| Thread Tolerance Class (TCTR) | D7 | Flute Length | 1.181" |
| Overall Length (OAL) | 4.031" | End Shape | Spiral Point |
| Chamfer | Plug | Style | Plug |
| Coating | TiCN | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | 4416 |
