Brand: Guhring

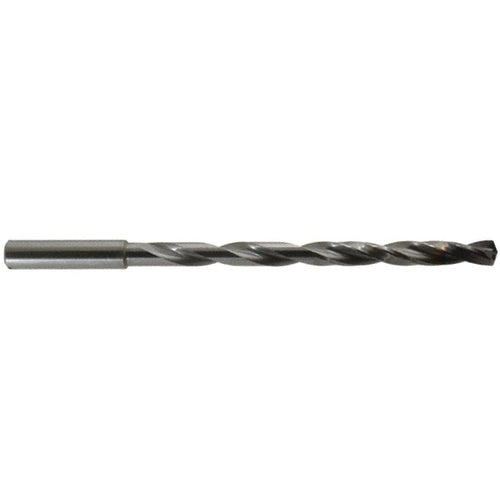

Guhring GD1155250103200 13/32 Dia. × 12 mm Shank × 156 mm Flute Length × 204 mm OAL, 12xD, 140°, nano-FIREX, 2 Flute, Coolant Thru, Round Solid Carbide Drill
SKU: FTS-GD1155250103200
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
GD1155250103200 13/32" Dia. × 12 mm Shank × 156 mm Flute Length × 204 mm OAL, 12xD, 140°, nano-FIREX, 2 Flute, Coolant Thru, Round Solid Carbide DrillFull Description
| Drill Bit Size / Cutting Diameter (DC) | 13/32" | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 13/32" | Tool Type | Carbide Drill |
| Decimal Equivalent | 0.4063" | Measurement Type | Inch |
| Length Group | 12xD | Series/List # | 5525 |
| Coating | nano-FIREX | Length Chip Flute (LCF) | 156 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Overall Length (OAL) | 204 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shape | Solid Carbide |
Family Description
9055250103200 13/32 CBD HP 12XD
