Brand: Guhring

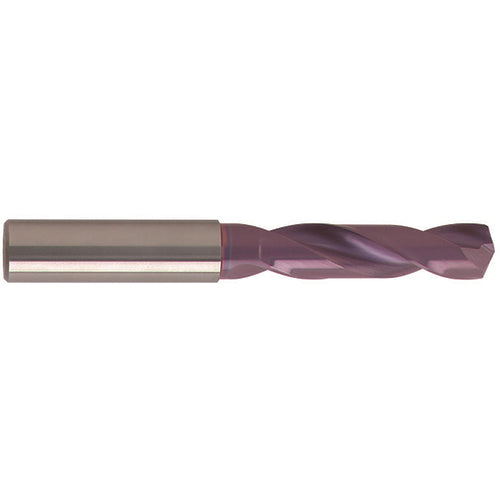

Guhring GD1155140140000 14 mm Dia. × 14 mm Shank × 60 mm Flute Length × 107 mm OAL, 3xD, 140°, nano-FIREX, 2 Flute, External Coolant, Round Solid Carbide Drill
SKU: FTS-GD1155140140000
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
GD1155140140000 14 mm Dia. × 14 mm Shank × 60 mm Flute Length × 107 mm OAL, 3xD, 140°, nano-FIREX, 2 Flute, External Coolant, Round Solid Carbide DrillFull Description
| Drill Bit Size / Cutting Diameter (DC) | 14 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5512" | Tool Type | Carbide Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 14 mm | Measurement Type | Metric |
| Length Group | 3xD | Series/List # | 5514 |
| Coating | nano-FIREX | Usable Length (LU) | 39 mm |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Length Chip Flute (LCF) | 60 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 107 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shape | Solid Carbide | Body Material | Carbide |
Family Description
9055140140000 14MM CBD HP 3XD DRILL
