Brand: Guhring

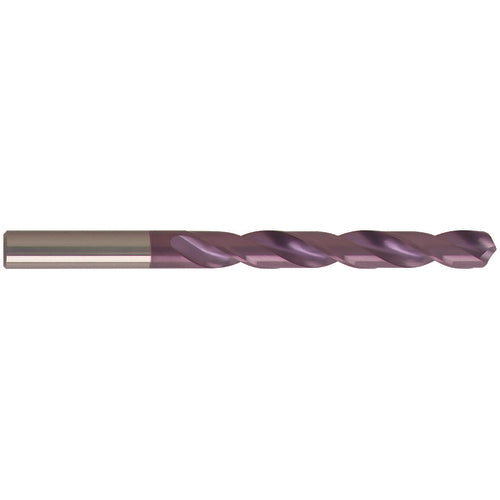

Guhring GD1155120175000 17.5 mm Dia. × 18 mm Shank × 171 mm Flute Length × 223 mm OAL, 7xD, 140°, nano-FIREX, 2 Flute, Coolant Thru, Round Solid Carbide Drill
SKU: FTS-GD1155120175000
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
GD1155120175000 17.5 mm Dia. × 18 mm Shank × 171 mm Flute Length × 223 mm OAL, 7xD, 140°, nano-FIREX, 2 Flute, Coolant Thru, Round Solid Carbide DrillFull Description
| Drill Bit Size / Cutting Diameter (DC) | 17.5 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.689" | Tool Type | Carbide Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 17.5 mm | Measurement Type | Metric |
| Length Group | 7xD | Series/List # | 5512 |
| Coating | nano-FIREX | Length Chip Flute (LCF) | 171 mm |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Overall Length (OAL) | 223 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shape | Solid Carbide |
Family Description
9055120175000 17.5MM CBD HP 7XD
