Brand: Guhring
Guhring GD1003290043700 11/64 Dia-Cobalt HD Screw Machine Drill-130° Point-Surface Treated
SKU: FTS-GD1003290043700
MPN:

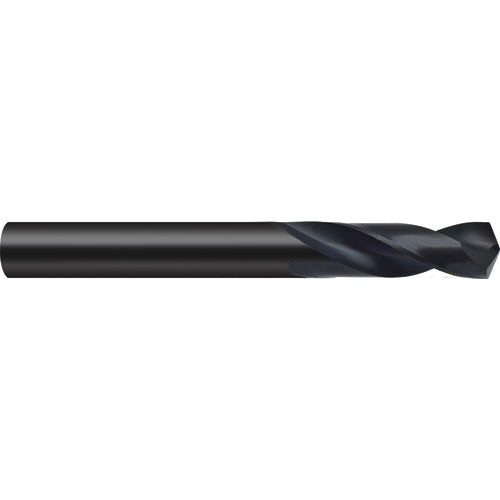

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
GD1003290043700 11/64 Dia-Cobalt HD Screw Machine Drill-130° Point-Surface TreatedFull Description
| Measurement Type | Inch | Flute Length | 24 mm |
| Drill Bit Size / Cutting Diameter (DC) | 11/64" | Flute Count (NOF) | 2 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 11/64" | Overall Length (OAL) | 58 mm |
| Decimal Equivalent | 0.1719" | Shank Type | Straight |
| Angle | 130 Degrees | Standard | DIN 1897 |
| Shape | Screw Machine | Tool Type | GV 120 |
| Coating | Steam Oxide | Connection Diameter Machine Side (DCONMS) | 11/64" |
| Cutting Edge Material | HSSCo | Series/List # | 329 |
Family Description
9003290043700Â 11/64 COB HD SM DRILL
