Industrial Magnetics MAG-MATE ® FXR Lift Magnet 1000 Lbs Cap. FXR1000

Brand: INDUSTRIAL MAGNETICS

Industrial Magnetics MAG-MATE ® FXR Lift Magnet 1000 Lbs Cap. FXR1000

SKU: IM-FXR1000
MPN: FXR1000

  • $1,595.00
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Industrial Magnetics MAG-MATE® FXR Lift Magnet 1000 Lbs Cap. FXR1000. FX Permanent Lift Magnets. These well designed, On/Off permanent lift magnets are ideal for lifting flats and rounds in a variety of manufacturing applications. Sized and engineered to give maximum strength for the given application, these magnets are not only effective, but light-weight and compact.

*Industrial Magnetics orders must meet a minimum of $75*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

Industrial Magnetics MAG-MATE® FXR Lift Magnet 1000 Lbs Cap. FXR1000

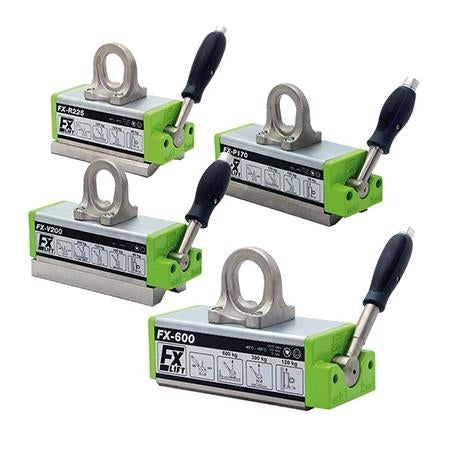

FX Permanent Rare-Earth Lift Magnet Series

These on/off permanent lifts offer strength in a lightweight, compact package. Each line of lifting magnets in the FX family of products has been specifically designed for maximum performance by user application. The size, shape and dimension of the parts you'll primarily be lifting - whether flat, curved, or circular-shaped - will determine the best FX lift magnet for you.

On all magnets in the series, the unique handle design only requires a 90° rotation to either engage or disengage the magnet (versus the 120°or even 180°required on most on/off lifting magnets), making it easy for operators to use in applications where the magnet is lifting something from inside a bin or a deep trough. The handle also features a positive lock-on/lock-off mechanism that requires the operator to manually switch between the two states. This prevents the handle from being turned only partially on, or from being accidentally bumped to the ‚¬œoff‚¬ position and dropping the load pre-maturely.

  • ON/OFF, Rare-Earth Permanent Magnet
  • Handle locks in both the On & Off positions for safety
  • Lifts flat sheets or curved pipe
  • Heat resistant up to 180° F (82° C)
  • 3:1 design factor
  • Meets 2018 ASME B30.20 BTH-1 Design Category B Service Class

FX Models:

FX - For primarily lifting thick, flat stock, with the occasional need to lift something curved, such as a pipe, shaft, or billet.
FXP - Mostly for thin sheets, tanks/containers and thin wall pipe
FXR - Mostly round/curved surfaces such as shafts, thick wall pipe, billets and occasional flat material
FXV- Mainly angle iron (90°), I-beam web location where you need the handle rotation higher & hot parts up to 482°F

FX lift magnets are manufactured by Flaig Magnetsysteme in Germany. IMI is the exclusive North American distributor.

Literature Download: FX Permanent Lift Magnets
FX Lift Magnets
Part No. Working Load Limit (Lbs.) Working Load Limit (Kg) Overall Length (in) Magnet Height (in) Magnet Wd. (in) Overall Height (in) Handle (in) Weight (lbs)
FX - For Flats Sheets and Select Round Materials
FX0330 330 150 6.3 2.3 2.5 4.0 5.3 8
FX0660 660 300 8 3 3.4 6.2 7.5 19
FX1320 1320 600 11.3 3.7 4.4 7.4 9 42
FX2200 2200 1000 14.2 4.7 6 9.4 10.2 93
FX4400 4400 2000 18.5 6.6 9 12.3 16.1 254
FX6600 6600 3000 25.5 6.6 9 12.3 21 366
FXP - for Thin Sheets and Pipe
FXP0375 375 170 7.7 2.7 2.5 5.3 5.3 12
FXP0725 725 330 10.4 3.5 3.4 6.7 7.5 28
FXP1450 1450 650 13.8 4.2 4.4 8.0 9 58
FXR - for Round Material
FXR0220 220 100 6.3 2.7 2.7 5.2 5.3 9
FXR0500 500 225 8.0 3.5 3.8 6.7 7.5 21
FXR1000 1000 450 11.3 4.4 4.9 8.1 9.0 49
FXR1650 1650 750 14.2 5.6 6.7 10.3 10.2 108
FXR2650 2650 1200 18.5 7.5 9.7 13.1 16.1 280
FXR4000 4000 1800 25.5 7.5 9.7 13.1 21.0 402
FXV - for Beams, Angle Iron(90°) and Hot Parts
FXV0440 440 220 7.7 3.0 2.5 5.5 5.3 12
FXV0880 880 440 10.4 3.8 3.4 6.9 7.5 29
FXV1775 1775 800 13.5 4.5 4.4 8.3 9 62

Note: Never stand under load being lifted. Always use extra caution. Only use magnetic lifts on material that does not flex or bend. The surface of the lift, and the load being lifted, need to be clean and free of chips, oil, slag, dirt, etc. Lifting magnets must be centered on load. Not recommended for painted or finish coated surfaces.
