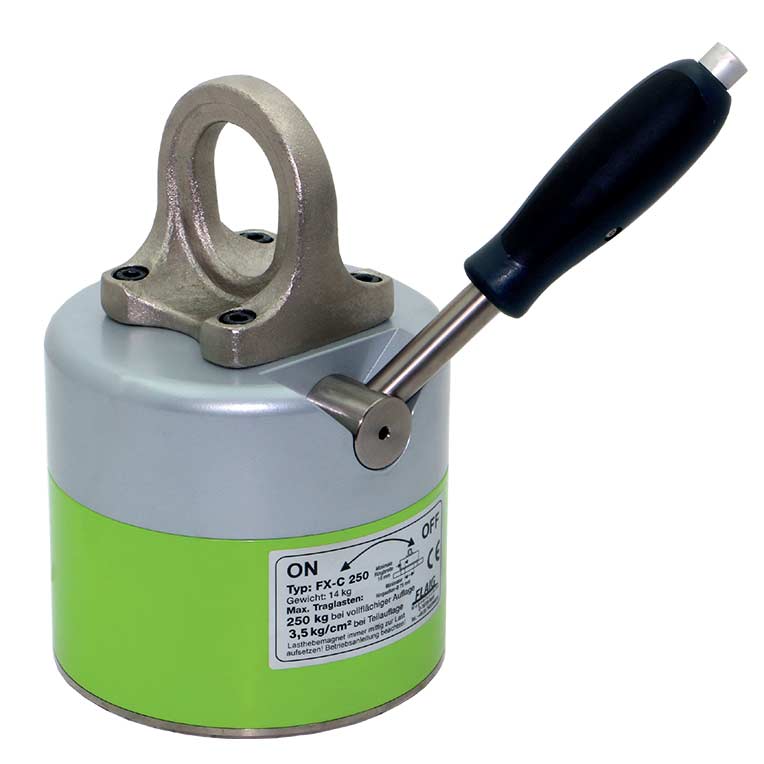

Industrial Magnetics MAG-MATE ® FXC Lift Magnet 385 Lbs Cap. FXC0385

Brand: INDUSTRIAL MAGNETICS

Industrial Magnetics MAG-MATE ® FXC Lift Magnet 385 Lbs Cap. FXC0385

SKU: IM-FXC0385
MPN: FXC0385

  • $1,834.00
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Industrial Magnetics MAG-MATE® FXC Lift Magnet 385 Lbs Cap. FXC0385. FXC Round Permanent Lift Magnets. These round-shaped, On/Off permanent lifting magnets are perfect for lifting circular parts, such as rings, sleeves, bearing housings, flange plates and end of billet/pipe/shaft pieces

*Industrial Magnetics orders must meet a minimum of $75*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

Industrial Magnetics MAG-MATE® FXC Lift Magnet 385 Lbs Cap. FXC0385

FXC Permanent Rare-Earth Lift Magnets - for flat, circular parts

The FXC lift magnets have a round, multi-pole magnetic field designed for lifting flat, circular-shaped parts, such as rings, sleeves, bearing housings, flange plates and end of billet/pipe/shaft pieces. The locking, safety handle only requires 90° rotation to turn the magnet on and off, versus the 180° common on most lift magnets. Durable construction with metal name plates and corrosion-resistant plated magnet surface. Features a 3:1 design factor and meets 2018 ASME B30.20 BTH-1 Design Category B, Service Class 3.

  • ON/OFF, Rare-Earth Permanent Magnet
  • Handle locks in both the On & Off positions for safety
  • Metal name plates
  • Corrosion-resistant plated magnet surface
  • 3:1 design factor
  • Meets 2018 ASME B30.20 BTH-1 Design Category B Service Class

FX lift magnets are manufactured by Flaig Magnetsysteme in Germany. IMI is the exclusive North American distributor.

Literature Download: FXC Round Permanent Lift Magnets
FXC Permanent Lifting Magnets - for rounds, rings, and flange plates
Part No. Working Load Limit (lbs.) Working Load Limit (kg) Overall Height (in) Magnet Height (in) Magnet Diameter (in) Overall Diameter (in) Handle (in) Weight (lbs)
FXC0385 385 175 8.3 5.1 4.5 4.7 7.5 17
FXC0550 550 250 9.5 5.7 6.0 6.3 7.5 33
FXC0990 990 450 11.2 6.1 9.4 9.3 9 77

Note: Never stand under load being lifted. Always use extra caution. Only use magnetic lifts on material that does not flex or bend. The surface of the lift, and the load being lifted, need to be clean and free of chips, oil, slag, dirt, etc. Lifting magnets must be centered on load. Not recommended for painted or finish coated surfaces.
