Brand: OSG USA, Inc.

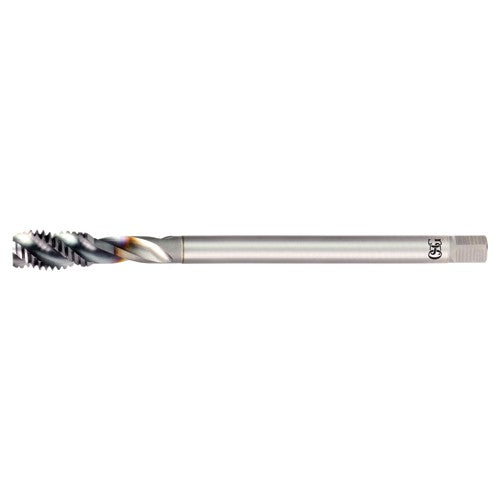

OSG USA, Inc. TP531652001208 M3X0.35X100 D3 2FL SP FL TAP TICN
SKU: FTS-TP531652001208
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
OSG USA, Inc. 1652001208 M3X0.35X100 D3 2FL SP FL TAP TICNFull Description
| Thread Diameter Size (TDZ) | M3 | Cutting Edge Material | VC-10 |
| Thread Pitch (TP) | 0.35 mm | Thread Tolerance Class (TCTR) | D3 |
| Thread Standard | Metric | Chamfer | 2.5P |
| Overall Length (OAL) | 100 mm | Coating | V Coating |
| Usable Length (LU) | 18 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3.58 mm | Flute Type | Spiral |
| Flute Count (NOF) | 3 | Series/List # | 16520 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Thread Size | M3 x 0.35 |
