Brand: OSG USA, Inc.

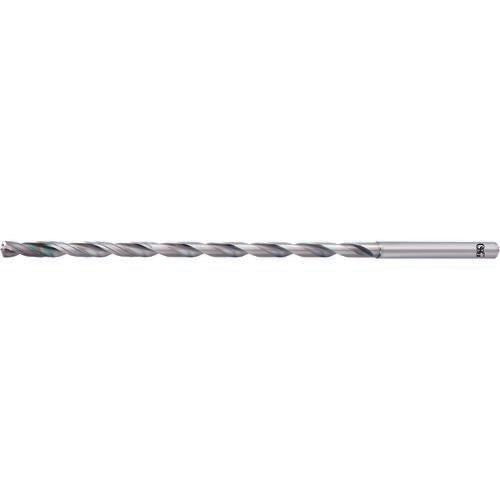

OSG USA, Inc. TP34654026412 17/64? Dia. ?5/16? Shank ?155 mm Flute Length ?210 mm OAL, 20xD, EgiAs, 2 Flute, Solid Carbide Drill 654026412
SKU: FTS-TP34654026412
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
OSG USA, Inc. 654026412 17/64" Dia. x 5/16" Shank x 155 mm Flute Length x 210 mm OAL, 20xD, EgiAs, 2 Flute, Solid Carbide DrillFull Description
| Drill Bit Size / Cutting Diameter (DC) | 17/64" | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 17/64" | Tool Type | Taper Drill |
| Decimal Equivalent | 0.2656" | Measurement Type | Inch |
| Length Group | 20xD | Series/List # | 6540 |
| Coating | EgiAs | Usable Length (LU) | 155 mm |
| Applicable Material | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | Hard Materials | Length Chip Flute (LCF) | 155 mm |
| Connection Diameter Machine Side (DCONMS) | 5/16" | Overall Length (OAL) | 210 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 155 mm |
