Brand: Tungaloy

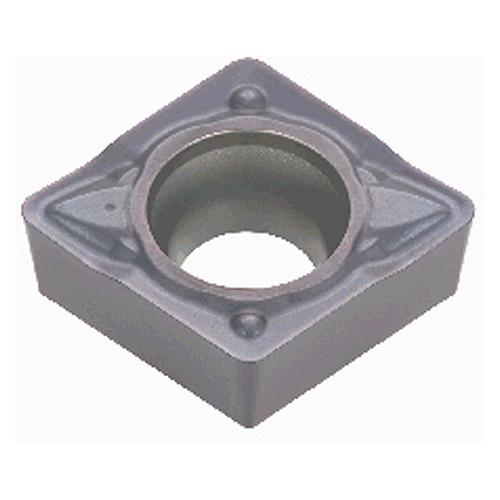

Tungaloy TG556749945 CCMT 21.51 PSS AH8005
SKU: FTS-TG556749945
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy 6749945 CCMT 21.51 PSS AH8005Full Description
| Applicable Material | | Hard Materials | Hi Temp Alloys | | Fixing Hole Diameter (D1) | 0.11" |
| Application | | Inserts | | Min D.O.C. | 0.0118" |
| Insert Style | CCMT | Depth of Cut Maximum (APMX) | 0.0787" |
| Corner Radius (RE) | 0.016" | Min. Turning Feed (ft(min)) | 0.0039 "/rev |
| Insert Size | 21.51 | Max. Turning Feed (ft(max)) | 0.0118 "/rev |
| Cutting Edge Length (L) | 0.256" | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.094" | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4" | Chip Breaker Type | PSS |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Series/List # | CCMT 21.51-PSS |
| Grade | AH8005 | Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
Family Description
Positive 7deg relief ang., M class, 80deg rhombic insert, for finishing to medium cutting
