Brand: Tungaloy

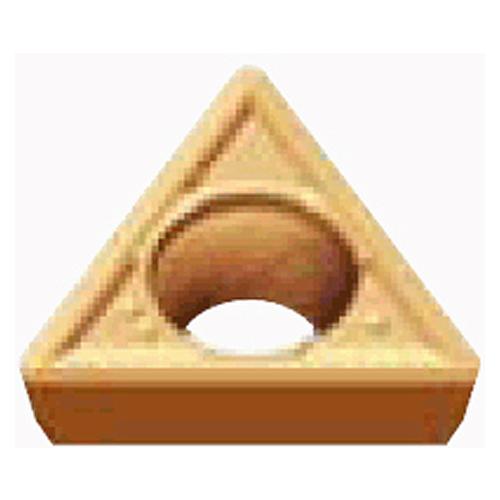

Tungaloy TG556747835 TPMT 32.51 CM T515
SKU: FTS-TG556747835
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy 6747835 TPMT 32.51 CM T515Full Description
| Applicable Material | | Cast Iron | | Fixing Hole Diameter (D1) | 0.173" |
| Application | | Inserts | | Min D.O.C. | 0.0019" |
| Insert Style | TPMT | Depth of Cut Maximum (APMX) | 0.0787" |
| Corner Radius (RE) | 0.016" | Min. Turning Feed (ft(min)) | 0.002 "/rev |
| Insert Size | 32.51 | Max. Turning Feed (ft(max)) | 0.0118 "/rev |
| Cutting Edge Length (L) | 0.65" | Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 0.156" | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8" | Chip Breaker Type | CM |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3 | Series/List # | TPMT 32.51-CM |
| Grade | T515 | Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
Family Description
Positive 11deg relief ang., M class, triangular insert, for multi-purpose cutting of grey and ductile cast iron
