Brand: Tungaloy

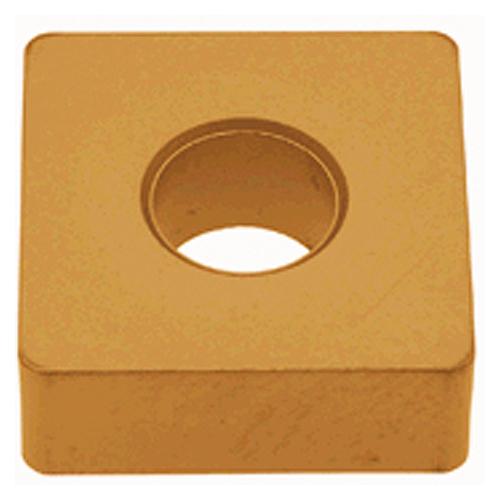

Tungaloy TG556733833 SNMA 433 T515
SKU: FTS-TG556733833
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy 6733833 SNMA 433 T515Full Description
| Applicable Material | | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Fixing Hole Diameter (D1) | 0.203" |
| Insert Style | SNMA | Min D.O.C. | 0.0003" |
| Corner Radius (RE) | 0.047" | Depth of Cut Maximum (APMX) | 0.0787" |
| Insert Size | 433 | Min. Turning Feed (ft(min)) | 0.002 "/rev |
| Cutting Edge Length (L) | 1/2" | Max. Turning Feed (ft(max)) | 0.0118 "/rev |
| Insert Thickness (S) | 0.187" | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2" | Chip Breaker Type | FT |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3 | Series/List # | SNMA 433-FT |
| Grade | T515 | Body Material | Carbide |
Family Description
Negative relief ang., M/G class, square insert, without chipbreaker for finishing to medium cutting
