Brand: Tungaloy

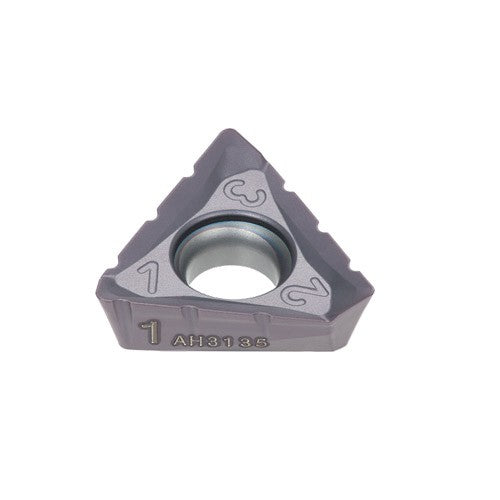

Tungaloy TG436999389 TOMT150608PDER-NMJ AH120
SKU: FTS-TG436999389
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy 6999389 TOMT150608PDER-NMJ AH120Full Description
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Grade | AH120 |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.0087 in/tooth |
| Corner Radius (RE) | 0.0315" | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.591" | Minimum Feed per Tooth (fz(min)) | 0.003 in/tooth |
| Inscribed Circle Diameter (IC) | 1/2" | Cutting Edge Effective Length (LE) | 0.618" |
| Insert Thickness (S) | 0.236" | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.075" | Body Material | Carbide |
| Coating | TiAlN |
Family Description
Inserts with NMJ chipbreaker. Suitable for machining with large width of cut due to split chips.
For setting NMJ inserts, click on "More Info".
