Brand: Tungaloy

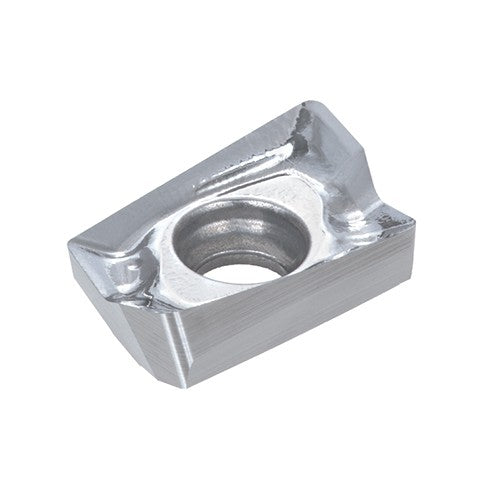

Tungaloy TG436733159 AVGT060308PBFR-AJ KS05F
SKU: FTS-TG436733159
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy 6733159 AVGT060308PBFR-AJ KS05FFull Description
| Applicable Material | | Cast Iron | Non Ferrous Metals | Hi Temp Alloys | | Grade | KS05F |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.0047 in/tooth |
| Corner Radius (RE) | 0.0315" | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.236" | Minimum Feed per Tooth (fz(min)) | 0.0027 in/tooth |
| Insert Width (W1) | 0.197" | Cutting Edge Effective Length (LE) | 0.315" |
| Insert Thickness (S) | 0.102" | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.035" | Body Material | Carbide |
Family Description
Single-sided insert with 2 edges and AJ chipbreaker for non-ferrous material
