Brand: Tungaloy

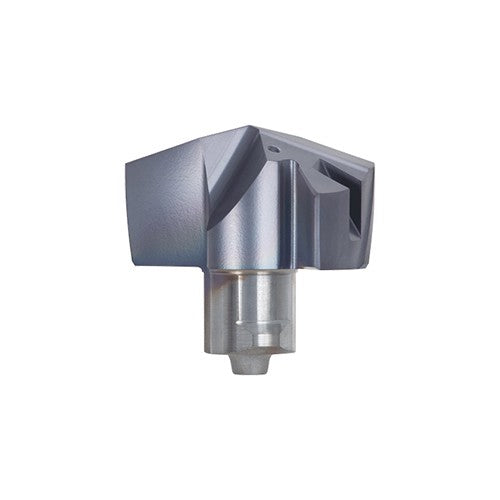

Tungaloy TG435568911 DMP1666 AH725
SKU: FTS-TG435568911
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy 5568911 DMP1666 AH725Full Description
| Cutting Diameter (DC) | 16.66 mm | Insert Seat Size Code (SSC) | 16 |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Cutting Edge Material | Carbide |
| Application | | General Drilling | | Measurement Type | Metric |
| Grade | AH725 | Point Length (PL) | 2.54 mm |
| Tool Type | Drilling Heads | Coating | TiAlN |
| Protruding Length (LPR) | 9.1 mm | Body Material | Carbide |
Family Description
DMP Drill head for general purpose use
Head diameter (DC): 4.00 5.90 / Head diameter (DC) tolerance: +0.015 / 0 Head diameter (DC): 6.00 17.90 / Head diameter (DC) tolerance: +0.018 / 0 Head diameter (DC): 18.00 25.90 / Head diameter (DC) tolerance: +0.021 / 0
