Brand: Rapidhold

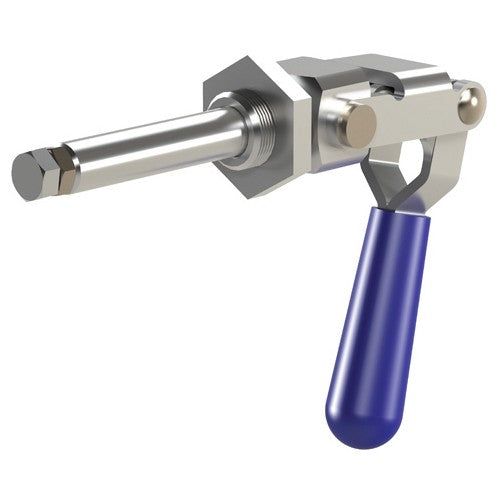

Rapidhold RH10R152 Model #R152 700 lbs 3/8?-16 Threaded Body Straight Line Clamp PTS13240CR

SKU: FTS-RH10R152
MPN: PTS13240CR

Unit price per

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

*Please note, this product maybe currently unavailable. Rapid brand is being replaced by Morse Cutting Tools.*

Short Description

Rapidhold 700 lbs 3/8-16 Thread Body Straight Line Clamp RH10R152

Full Description

Style	Push/Pull Toggle Clamp	Bar Style	Straight Line
Type	Toggle Clamp	Mounting Diameter	0.3300"
Arm	2.99"	Mounting Length	1.78"
Height Under Clamp Arm	.79"	Mounting Width	1.78"
Holding Capacity	700 lbs	Spindle Size	3/8"-16 × 1 1/4"
Overall Height	5.40"	Base Length	2.44"
Overall Length	6.73"	Plunger Diameter	.62"
Model No	R152	Bar Type	Through Hole Mount

• Provides straight line clamping/positioning action • Most models can be locked over-center in either extended or retracted position • Useful in a wide range of applications beyond workholding • Handle must be allowed to rotate > 180° for over-center locking in retracted position - Handle will fall below mounting surface
