Brand: Rapidhold

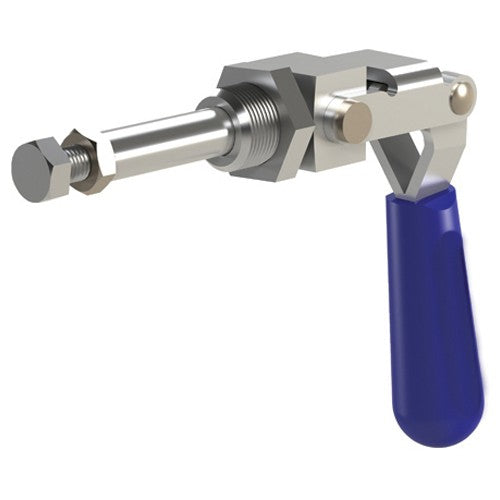

Rapidhold RH10R145 Model #R145 300 lbs 5/16?-18 Threaded Body Straight Line Clamp PTS13040CR
SKU: FTS-RH10R145
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Rapidhold 300 lbs 5/16-18 Thread Body Straight Line Clamp RH10R145Full Description
| Style | Push/Pull Toggle Clamp | Bar Style | Straight Line |
| Type | Toggle Clamp | Mounting Diameter | 0.2200" |
| Arm | 2.79" | Mounting Length | .75" |
| Height Under Clamp Arm | .43" | Mounting Width | 1.63" |
| Holding Capacity | 300 lbs | Spindle Size | 5/16'-18 × 1" |
| Overall Height | 3.86" | Base Length | 1.63" |
| Overall Length | 4.53" | Plunger Diameter | .43" |
| Model No | R145 | Bar Type | Through Hole Mount |
• Provides straight line clamping/positioning action • Most models can be locked over-center in either extended or retracted position • Useful in a wide range of applications beyond workholding • Handle must be allowed to rotate > 180° for over-center locking in retracted position - Handle will fall below mounting surface
