Brand: Rapidhold

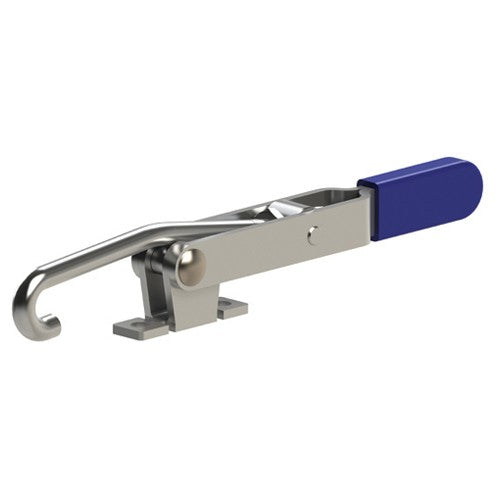

Rapidhold RH10R135 Model #R135 375 lbs J-Hook Narrow Base Latch Clamp PTS12515CR
SKU: FTS-RH10R135
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Rapidhold 375 lbs J-Hook Narrow Base Latch Clamp RH10R135Full Description
| Style | Latch Type Toggle Clamp | Mounting Length | 1.50" |
| Type | Toggle Clamp | Mounting Width | 1.38" |
| Arm | 1.94" | Base Length | 2" |
| Height Under Clamp Arm | .73" | Hook Diameter | 0.3200" |
| Holding Capacity | 375 lbs | Latch Distance | 1.76" |
| Overall Height | 1.38" | Latch Plate Length | 2" |
| Overall Length | 8.31" | Latch Plate Overall Length | 2" |
| Model No | R135 | Plunger Diameter | .19" |
| Bar Style | J-Hook | Bar Type | Flanged |
| Mounting Diameter | 0.2600" |
• Provides straight line clamping/positioning action • Most models can be locked over-center in either extended or retracted position • Useful in a wide range of applications beyond workholding
