Brand: Rapidhold

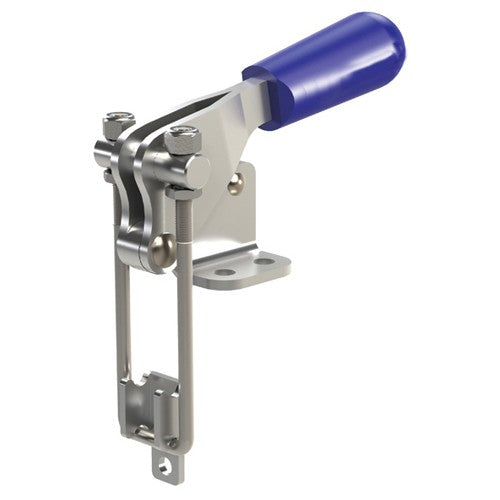

Rapidhold RH10R124 Model #R124 500 lbs Vertical U-Hook Flanged Base Latch Clamp PTS12240CR
SKU: FTS-RH10R124
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Rapidhold 500 lbs Vertical U-Hook Flanged Base Latch Clamp RH10R124Full Description
| Style | Latch Type Toggle Clamp | Mounting Length | .51" |
| Type | Toggle Clamp | Mounting Width | .87" |
| Arm | 1.02" | Spindle Size | 8/32" × 3.09" |
| Height Under Clamp Arm | 1.25" | Base Length | 1.02" |
| Holding Capacity | 500 lbs | Hook Diameter | 0.1600" |
| Overall Height | 3.35" | Latch Distance | 1.25" |
| Overall Length | 3.11" | Latch Plate Length | 1" |
| Model No | R124 | Latch Plate Overall Length | 1" |
| Bar Style | U-Hook | Plunger Diameter | .86" |
| Mounting Diameter | 0.2100" | Bar Type | Flanged |
• Provides straight line clamping/positioning action • Most models can be locked over-center in either extended or retracted position • Useful in a wide range of applications beyond workholding
