Brand: Ingersoll Cutting Tools

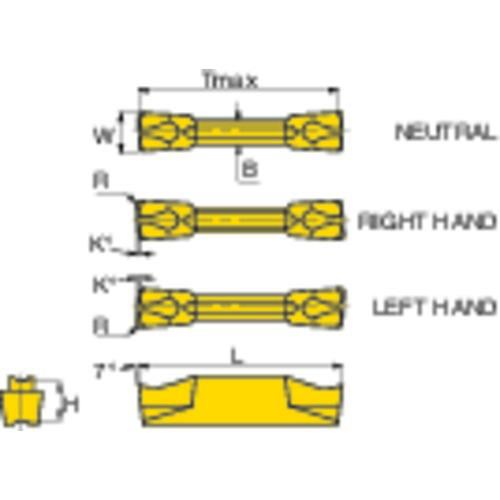

Ingersoll Cutting Tools IC046125935 TDJ3.18 TT9080
SKU: FTS-IC046125935
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ingersoll 6125935 TDJ3.18 TT9080Full Description
| Cutting Width (CW) | 1/8" | Application | | Ext. Grooving | Parting | |
| Corner Radius (RE) | 0.008" | Insert Size | 3 |
| Insert Thickness (S) | 0.185" | Number of Cutting Edges | 2 |
| Insert Length (INSL) | 0.79" | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.748" | Clearance Angle Major (AN) | 7 Degrees |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | TT9080 | Insert Seat Size Code (SSC) | 3 |
| Cutting Direction (HAND) | Neutral |
Family Description
J-type Chipbreakers Not for lateral Turning
