Brand: TMX

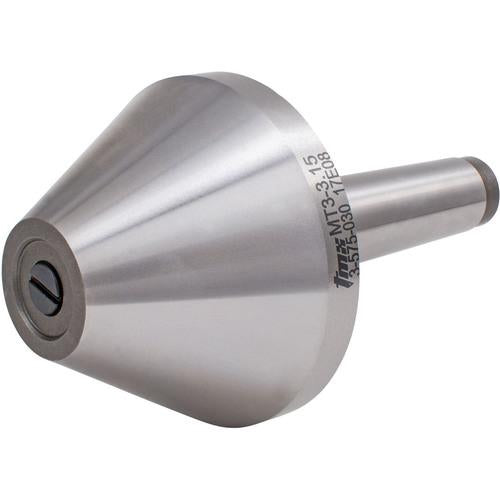

TMX HK313575030P 3MT 3.15IN BULL HEAD LIVE
SKU: FTS-HK313575030P
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
TMX 3-575-030P 3MT 3.15IN BULL HEAD LIVEFull Description
| Type | Live Center | Accuracy | 0.0003" |
| Taper Type | Morse Taper | Weight | 2.98 lbs |
| Point Style | Alloy Steel | Model No | 3-575-030P |
| Maximum RPM | 4,500 | Head Length | 2.0900" |
| Mount | 3 MT | Point Length | 2.3200" |
| Overall Length | 5.5100" | Style | Bull Nose & Pipe |
| Point Diameter | 1.1800" | Maximum Workpiece Weight | 770 lbs |
| Shank Diameter | 3.1500" |
- Centers are designed to hold pipe and hollow work
- Triple bearing design
- Three matched bearings are preloaded at the factory
- Good thrust and radial capabilities
- Bearings are protected by a special seal
- Head is made of high quality alloy steel and heat treated to RC 61-63
- 60 degree head angle
