Brand: TMX

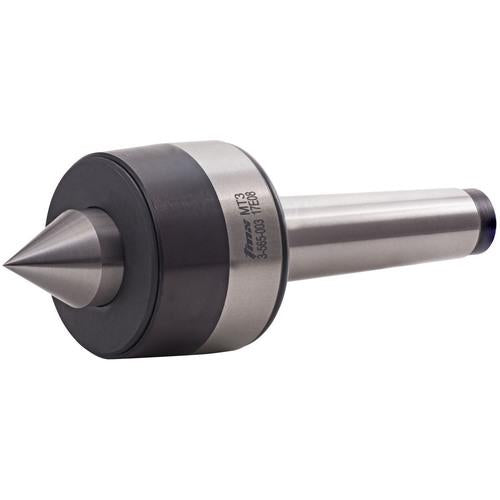

TMX HK313565005P Live Centers MT #5 Precision T.I.R. .0004
SKU: FTS-HK313565005P
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
TMX 3-565-005P Live Centers MT #5 Precision T.I.R. .0004Full Description
| Type | Live Center | Shank Diameter | 3.3500" |
| Taper Type | Morse Taper | Accuracy | 0.0004" |
| Point Style | Alloy Steel | Weight | 8.37 lbs |
| Maximum RPM | 2,500 | Model No | 3-565-005P |
| Mount | 5 MT | Point Length | 4.2300" |
| Overall Length | 9.3300" | Style | Precision |
| Point Diameter | 1.6100" | Maximum Workpiece Weight | 4,400 lbs |
- Each center hardened and ground from one single piece of forging
- Spindles are made of high quality alloy steel, heat treated to RC 60-62
- Each live center provided with 3 selected heavy duty precision bearings
- Each bearing is specifically protected against dust and coolant
