Brand: Sandvik Coromant

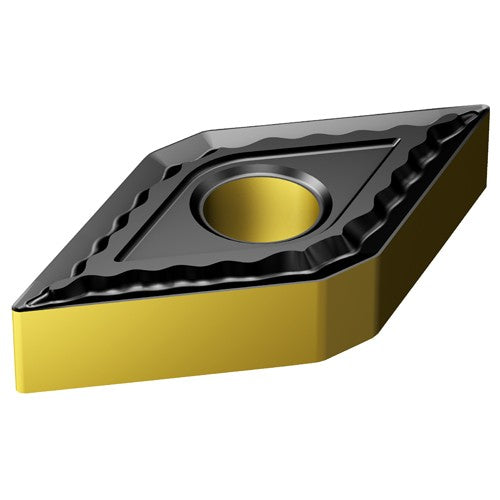

Sandvik Coromant FF87DNMG7080904 DNMG 431 QM 4335, 0.016" Corner Radius, 0.187" Thick, 1/2" Inscribed Circle, TiCN|Al2O3|TiN, Diamond, Turning Indexable Insert
SKU: FTS-FF87DNMG7080904
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Sandvik Coromant 7080904 DNMG 431 QM 4335, 0.016" Corner Radius, 0.187" Thick, 1/2" Inscribed Circle, TiCN|Al2O3|TiN, Diamond, Turning Indexable InsertFull Description
| Applicable Material | Steel | Tool Type | Turning Insert |
| Insert Style | DNMG | Fixing Hole Diameter (D1) | 0.203" |
| Corner Radius (RE) | 0.016" | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 431 | Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 15.1038 mm | Chip Breaker Type | QM |
| Insert Thickness (S) | 0.187" | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2" | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | 55° Diamond |
| Coating | TiCN|Al2O3|TiN | Series/List # | DNMG 431-QM |
| Grade | 4335 | Model No | DNMG431-QM |
