Brand: Emuge

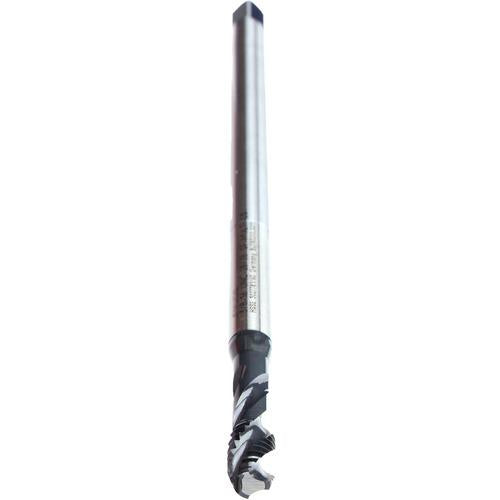

Emuge ER43B5863200030 M3x0.5- MultiTAP Long Spiral Flute SF-MULTI-LS
SKU: FTS-ER43B5863200030
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EMUGE-FRANKEN B5863200.0030 M3x0.5- MultiTAP Long Spiral Flute SF-MULTI-LSFull Description
| Thread Diameter Size (TDZ) | M3 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 0.5 mm | Tool Type | MultiTAP |
| Thread Standard | Metric | Standard | DIN |
| Overall Length (OAL) | 100 mm | Chamfer | 2P-3P |
| Thread Cutting Part Length (THL) | 11 mm | Coating | NE2 |
| Usable Length (LU) | 18 mm | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 3.5 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 35 Degrees | Flute Type | Spiral |
| Applicable Material | Universal Materials | Thread Size | M3 x 0.5 |
| Cutting Edge Material | HSSE |
