Brand: Iscar

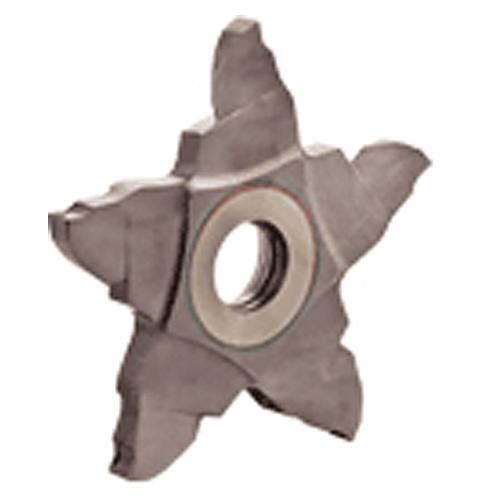

Iscar EH6004558 PENTA 34F239-0.15-22LS IC908

SKU: FTS-EH6004558
MPN: 6004558

$80.93
Unit price per
Save $1.99

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Iscar 6004558 PENTA 34F239-0.15-22LS IC908

Full Description

Cutting Width (CW)	0.094"	Tool Type	Face Turn-Groove Inserts
Corner Radius (RE)	0.0059"	Axial Groove Outside Diameter Minimum (DAXN)	0.87"
Cutting Depth Maximum (CDX)	0.197"	Max. Face Grooving Feed (ffg(max))	0.0047 "/rev
Shape	108° Pentagonal	Min. Face Grooving Feed (ffg(min))	0.0031 "/rev
Cutting Edge Material	Carbide	Coolant Supply Property (CSP)	External
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Hi Temp Alloys \|	Measurement Type	Inch
Grade	IC908	Coating	TiAlN
Application	\| Face Grooving \| Face Grooving Along Shaft \|	Body Material	Carbide

Family Description

Pentagonal inserts for face grooving and recessing along shafts, up to .197" depth of cut at a minimum of .866" diameter. The inserts are slightly tilted to enable machining next to the long central shaft.

For parting and grooving range, click on "More Info".
