Brand: Iscar

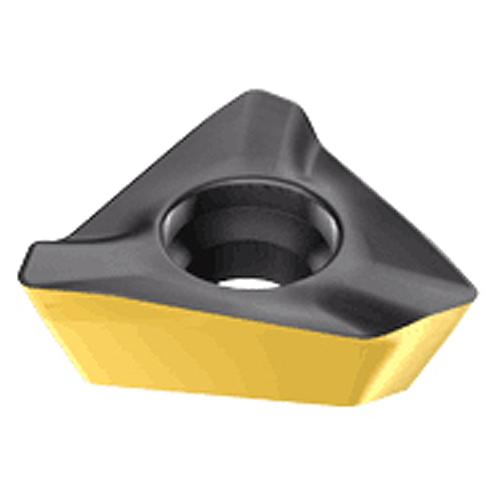

Iscar EH5667743 HM390 TPKT 1003PDR IC380
SKU: FTS-EH5667743
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5667743 HM390 TPKT 1003PDR IC380Full Description
| Applicable Material | | Hard Materials | Hi Temp Alloys | | Shape | 60° Triangle |
| Application | | Facing | Helical Interpolation | Milling Inserts | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 "/tooth |
| Insert Length (INSL) | 0.429" | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315" | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.315" | Minimum Feed per Tooth (fz(min)) | 0.0031 "/tooth |
| Insert Thickness (S) | 0.152" | Cutting Edge Effective Length (LE) | 0.315" |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC380 |
Family Description
Triangular inserts with 3 helical cutting edges for 90° shoulder accuracy. For general use applications.
