Brand: Iscar

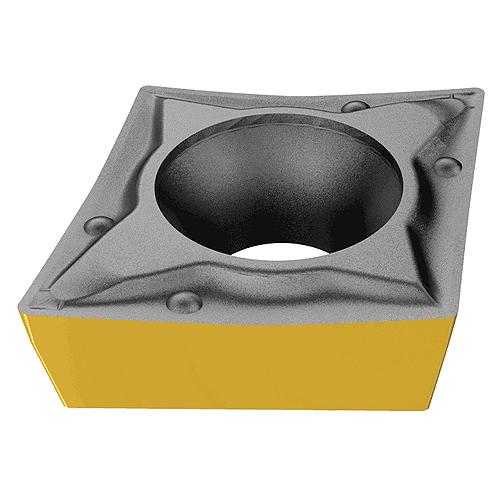

Iscar EH5568616 CCMT 3-0-PF IC830
SKU: FTS-EH5568616
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5568616 CCMT 3-0-PF IC830Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Fixing Hole Diameter (D1) | 0.173" |
| Application | | Insert | Int. 80° Diamond 95° Approach | Int. 80°Diamond 90° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Min D.O.C. | 0.02" |
| Insert Style | CCMT | Depth of Cut Maximum (APMX) | 0.118" |
| Corner Radius (RE) | 0.008" | Min. Turning Feed (ft(min)) | 0.002 "/rev |
| Insert Size | 3-0 | Max. Turning Feed (ft(max)) | 0.0118 "/rev |
| Cutting Edge Length (L) | 0.382" | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.156" | Chip Breaker Type | PF |
| Inscribed Circle Diameter (IC) | 3/8" | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Rhombic |
| Coating | AlTiN+TiN | Series/List # | CCMT 3-0-PF |
| Grade | IC830 | Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
Family Description
80° rhombic 7° positive flank inserts. Used for semi-finish and finishing applications on soft materials and exotic alloys. Positive rake angle, low cutting forces.
For dimensions and tolerances, see more info.
