Brand: Cleveland Twist Drill

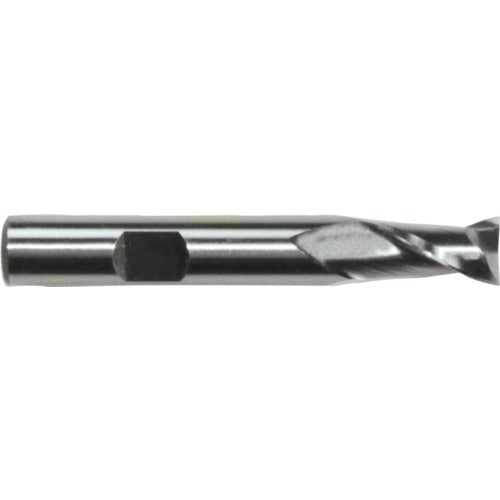

Cleveland Twist Drill CE60C75135 3/4X1/2X1-5/16X3-5/8 2F CO
SKU: FTS-CE60C75135
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Cleveland Twist Drill C75135 3/4X1/2X1-5/16X3-5/8 2F COFull Description
| Cutting Diameter (DC) | 3/4" | Applicable Material | Cast Iron | Super-Alloys / Titanium |
| Connection Diameter Machine Side (DCONMS) | 3/4" | Application | General purpose for carbon and alloy steel and cast iron. |
| Depth of Cut Maximum (APMX) | 1-5/16" | Corner Radius (RE) | None |
| Overall Length (OAL) | 3-5/8" | Tool Type | End Mill |
| Cutting Edge Material | HSS-Cobalt 8% (M42) | Style | Finisher |
| Coating | Bright | Decimal Equivalent | 0.75" |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | HGC-2 |
| Shank Type | Plain | Shank Size (SS) | 1/2" |
| End Shape | Square | Shank Length (LS) | 2-5/16" |
| Usable Length (LU) | 1-5/16" | Corner Radius (RE) / Chamfer Width (CHW) | None |
