Brand: M A Ford

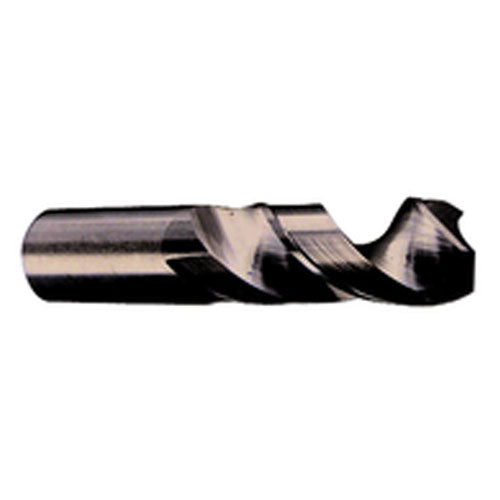

M A Ford AX4130601 ?1/4?, E Dia. ?1/4?, E Shank ?3/4? Flute Length ?1-1/2? OAL, 5xD, 118°, Uncoated, 2 Flute, External, Round Solid Carbide Drill 30025000
SKU: FTS-AX4130601
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
M A Ford 1/4", E Dia. x 1/4", E Shank x 3/4" Flute Length x 1-1/2" OAL, 5xD, 118°, Uncoated, 2 Flute, External, Round Solid Carbide Drill AX4130601Full Description
| Drill Bit Size / Cutting Diameter (DC) | 1/4" | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/4" | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.25" | Measurement Type | Inch |
| Length Group | 5xD | Series/List # | 300 |
| Coating | Uncoated | Usable Length (LU) | 3/4" |
| Connection Diameter Machine Side (DCONMS) | 1/4" | Length Chip Flute (LCF) | 3/4" |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 1-1/2" |
| Point Angle (SIG) | 118 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 35 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
Family Description
Alternate Manufacture # 30601
• Solid Carbide Drill • 5X Drilling Length • 118 Degree Point angle • 35 Degree Helix • Designed for drilling soft metals as well as glass reinforced circuit boards, phenolic-epoxies and other abrasive, but easily machined materials. • Over 150 sizes available ranging from .0135 to .250"
