Brand: Fullerton Tool

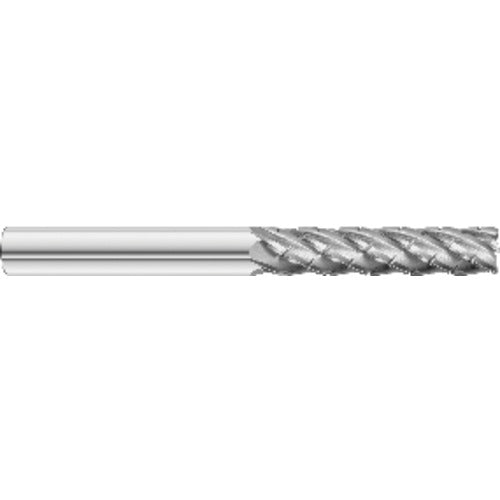

Fullerton Tool FT8525043 8mm × 8mm × 24mm × 64mm 5 Flute 0.5mm Radius Carbide End Mill-FC1

SKU: FTS-FT8525043
MPN: 25043

$250.71
Unit price per
Save $5.48

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Fullerton Tool 8mm x 8mm x 24mm x 64mm 5 Flute 0.5mm Radius Carbide End Mill-FC1 FT8525043

Full Description

Cutting Diameter (DC)	8 mm	End Shape	Corner Radius
Connection Diameter Machine Side (DCONMS)	8 mm	Usable Length (LU)	24 mm
Depth of Cut Maximum (APMX)	24 mm	Corner Radius (RE)	0.5 mm
Overall Length (OAL)	64 mm	Coolant Supply Property (CSP)	External
Cutting Edge Material	Carbide	Decimal Equivalent	0.315"
Coating	FC1	Measurement Type	Metric
Flute Count (NOF)	5	Series/List #	5500
Flute Helix Angle (FHA)	35 Degrees

• Fullerton's 5500 Series MATRX EM-1 End Mills multi-flute design allows for ultimate material removal rates • The MATRX EM-1 allows for high shear and low cutting forces that provide a clean edge without fibers • Chipbreakers produce a clean shearing of fibers • Right hand flute • Right hand spiral • Solid carbide • Cutter diameter tolerance: +.0000"Fullerton Tool FT8525043 8mm × 8mm × 24mm × 64mm 5 Flute 0.5mm Radius Carbide End Mill-FC1"-.0005 / +0.000-0.013mm • Shank diameter tolerance: h6 • Available uncoated and with FC-1 CVD diamond coating
