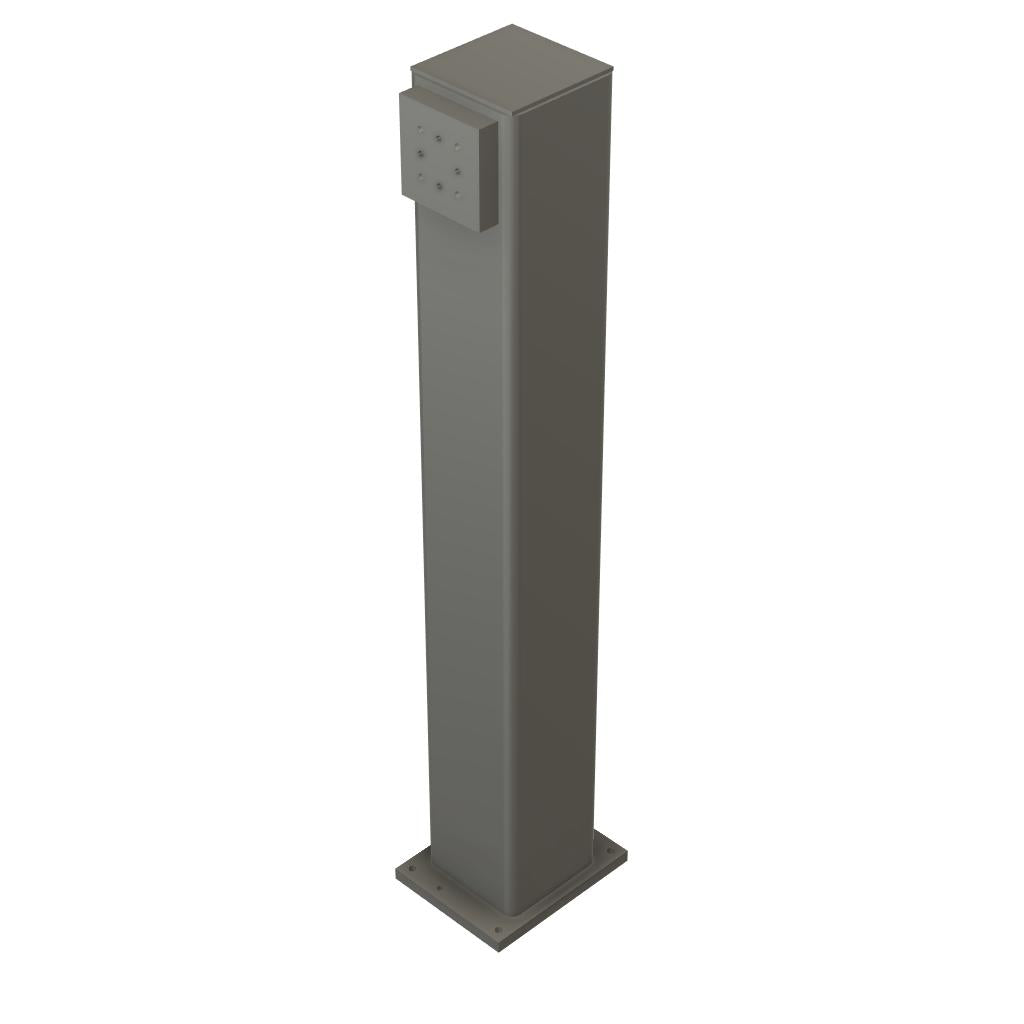

NAAMS ARV135 Drop Away Leaf Riser (Side Mount Machine Base Mounting) with 1415mm Tube

*This product can only be purchased with a UPS/FedEx shipping account. We apologize for the inconvenience.*

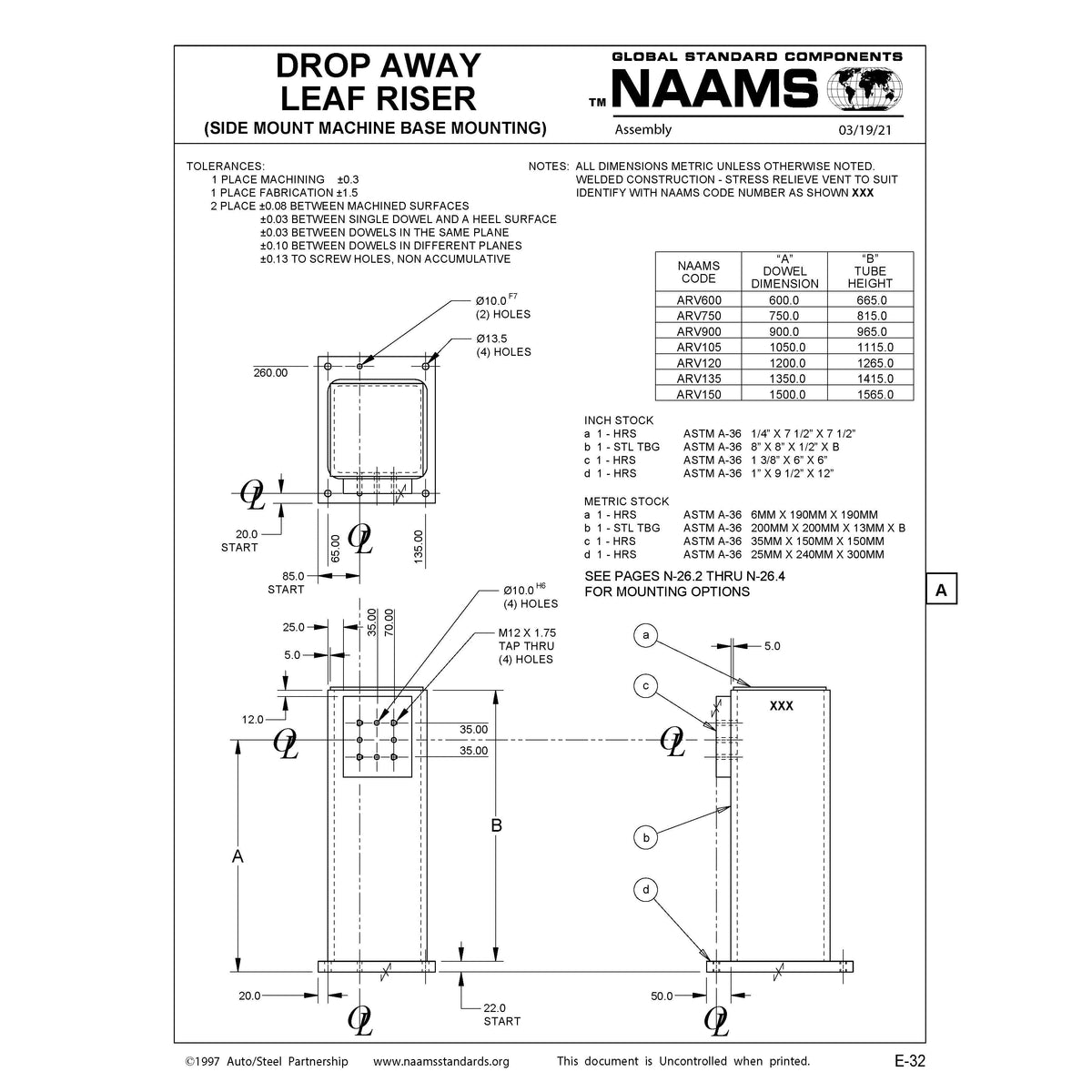

The NAAMS ARV135 Drop Away Leaf Riser is a heavy-duty, side-mounted support structure designed for integrating NAAMS drop-away leaf assemblies into advanced automotive and industrial tooling systems. Featuring a 1350 mm overall height and a 1415 mm tube length, this riser delivers exceptional lateral rigidity and precise vertical alignment, ensuring stable and repeatable leaf operation in high-volume production environments. Its side-mount configuration supports tooling layouts that require offset positioning, enhanced accessibility, or optimized space utilization within robotic welding cells and body-in-white fixtures. Manufactured in accordance with NAAMS global dimensional standards, the ARV135 ensures full compatibility, interchangeability, and consistent performance across standardized tooling platforms. Constructed from high-strength steel, it offers long service life and reliable operation under continuous cycling and heavy load conditions. When paired with a NAAMS drop-away leaf assembly, the ARV135 enhances fixture durability, improves serviceability, and supports efficient, repeatable automation processes.
