Brand: FREER NAAMS

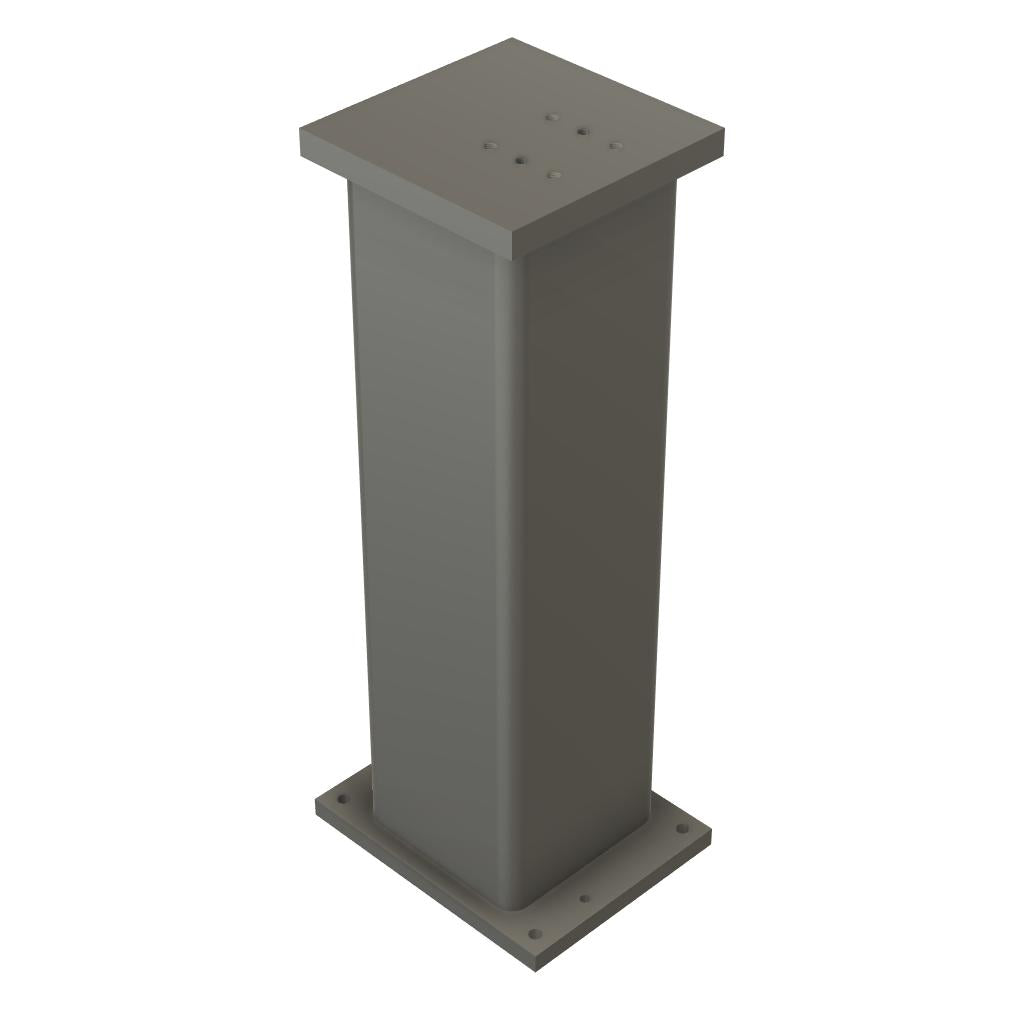

NAAMS ARH750 Drop Away Leaf Riser (Top Mount Machine Base Mounting) with 705mm Tube
SKU: FN-ARH750
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
*This product can only be purchased with a UPS/FedEx shipping account. We apologize for the inconvenience.*
The NAAMS ARH750 Drop Away Leaf Riser is a precision-engineered mounting platform designed to support NAAMS drop-away leaf assemblies in advanced automotive and industrial tooling applications. With a 750 mm overall height and a 705 mm tube length, this top-mount riser provides exceptional vertical stability, ensuring accurate alignment and repeatable leaf positioning within high-demand fixture environments. Manufactured to NAAMS global dimensional standards, the ARH750 offers full compatibility and interchangeability across standardized tooling systems while delivering the strength required for robotic welding, part locating, and body-in-white assembly operations. Its rigid steel construction ensures long service life under continuous production loads, while its height configuration enhances leaf accessibility and fixture ergonomics. When integrated with a NAAMS drop-away leaf unit, the ARH750 contributes to optimized workflow efficiency, improved serviceability, and dependable performance in complex automated manufacturing cells.

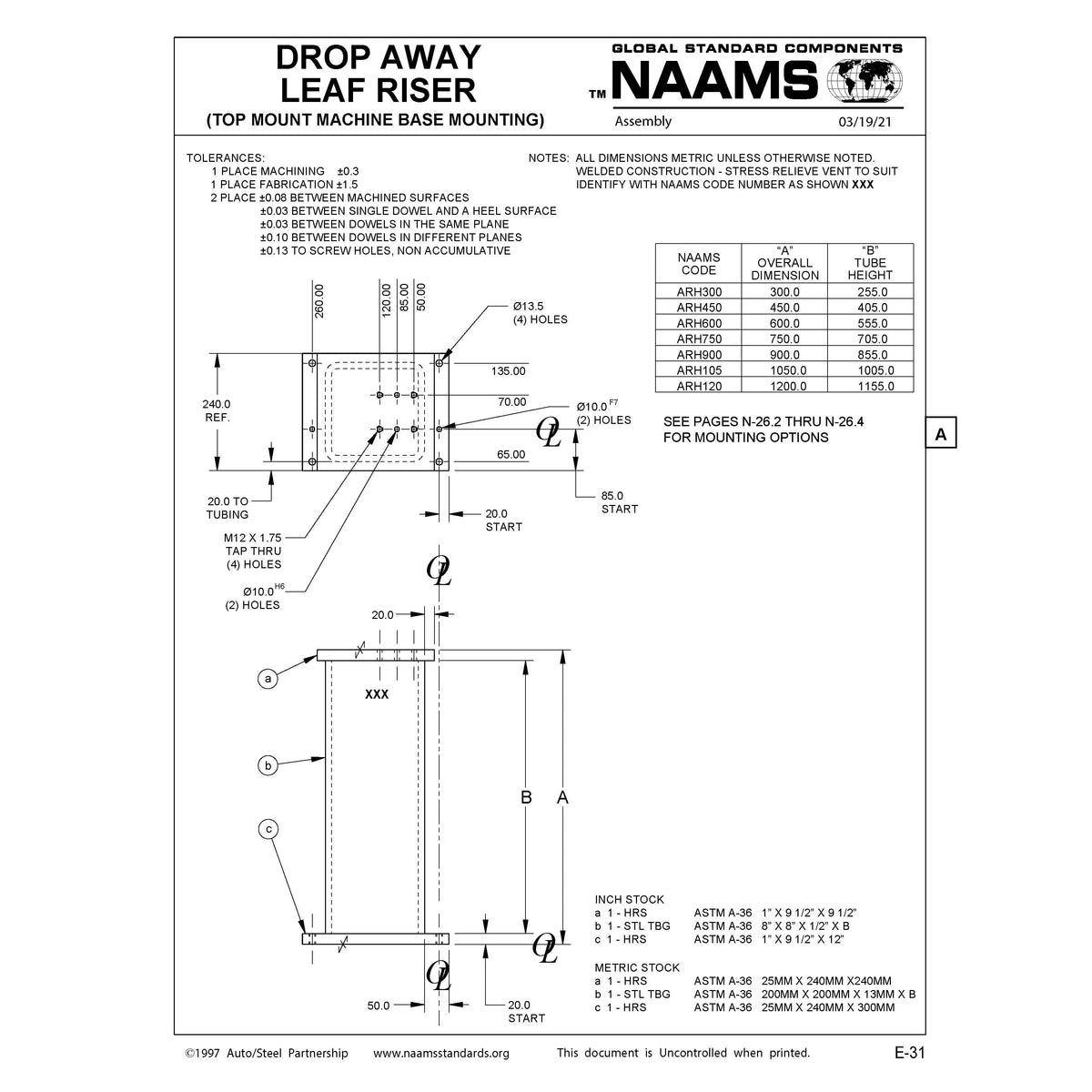

| NAAMS Code | "A" Overall Dimension (mm) | "B" Tube Height (mm) |
|---|---|---|
| ARH750 | 750 | 705 |
