Brand: FREER NAAMS

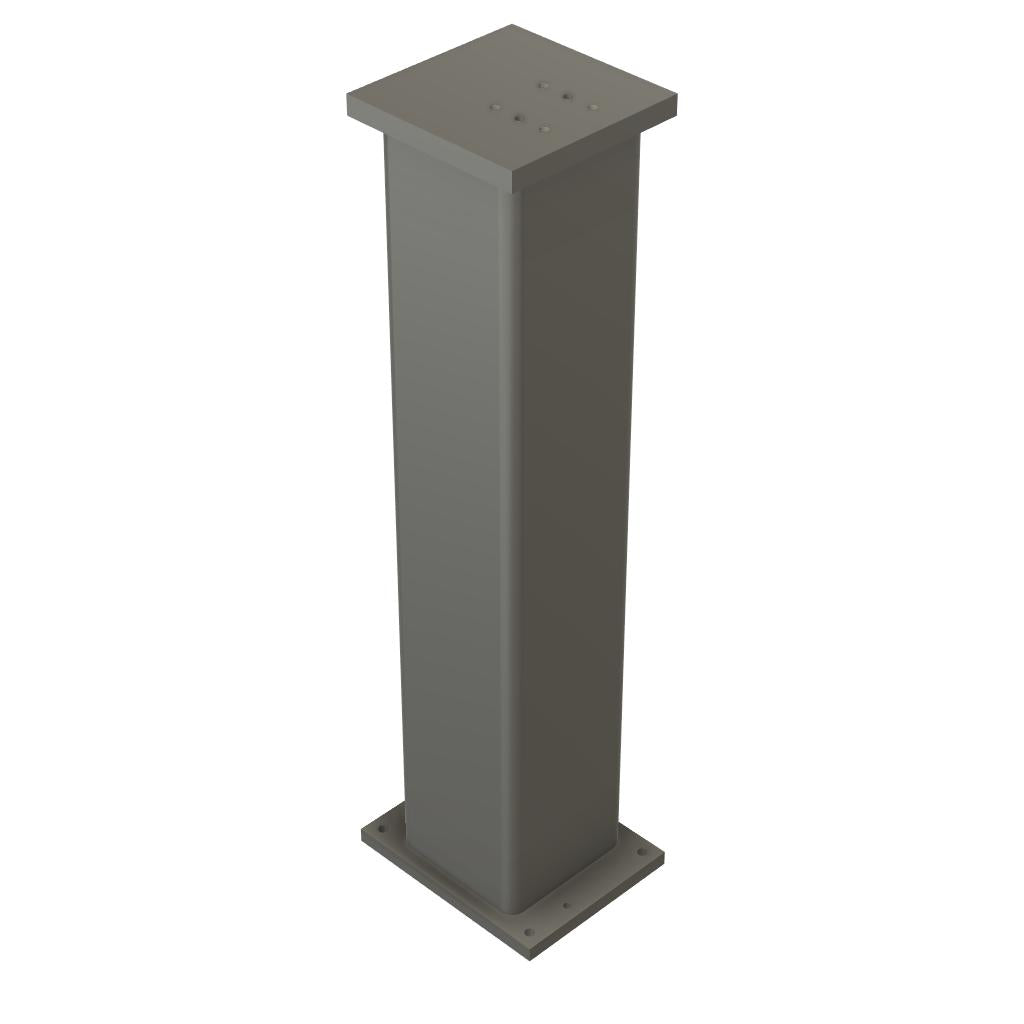

NAAMS ARH105 Drop Away Leaf Riser (Top Mount Machine Base Mounting) with 1005mm Tube
SKU: FN-ARH105
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
*This product can only be purchased with a UPS/FedEx shipping account. We apologize for the inconvenience.*
The NAAMS ARH105 Drop Away Leaf Riser is a high-strength, top-mounted support platform engineered specifically for NAAMS drop-away leaf assemblies used in automotive, welding, and industrial automation fixtures. With a 1050 mm overall height and a 1005 mm tube length, this riser provides precise vertical positioning and exceptional rigidity, ensuring accurate and repeatable alignment of attached leaf mechanisms. Manufactured to strict NAAMS global standards, the ARH105 delivers full compatibility and interchangeability across standardized tooling environments. Its heavy-duty steel construction withstands continuous production loads, making it ideal for body-in-white operations, robotic welding systems, and high-precision assembly tooling. When paired with a NAAMS drop-away leaf assembly, the ARH105 enhances tooling accessibility, improves workflow efficiency, and supports long-term reliability in demanding manufacturing applications.

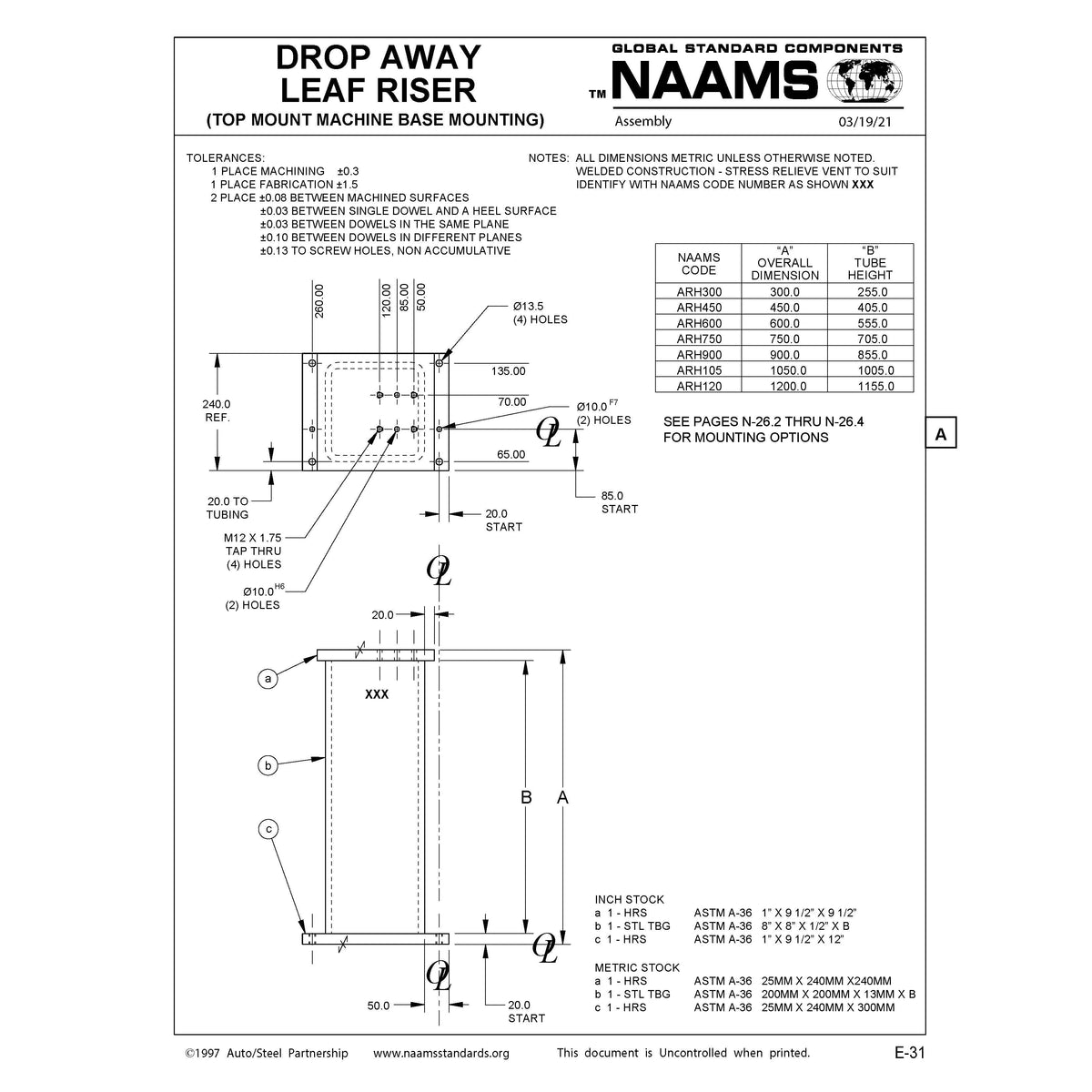

| NAAMS Code | "A" Overall Dimension (mm) | "B" Tube Height (mm) |
|---|---|---|
| ARH105 | 1050 | 1005 |
