Brand: Dorian

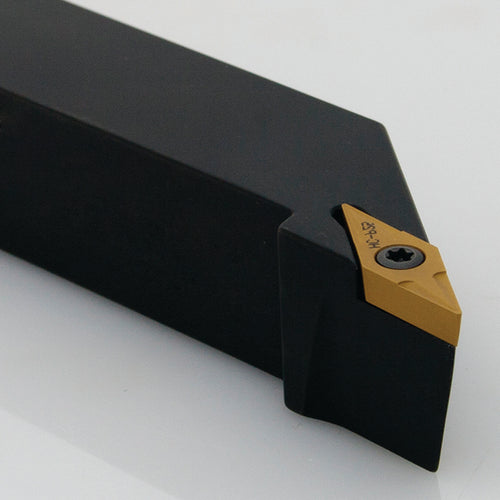

Dorian FL4544240 SVJBL16-3D Tool Holder
SKU: FTS-FL4544240
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Dorian SVJBL16-3D Tool Holder FL4544240Full Description
| Shank Height (H) | 1" | Coolant Supply Property (CSP) | No |
| Shank Width (B) | 1" | Shank Type | Square |
| Overall Length (OAL) | 6" | Body Material | Steel |
| Head Length (LH) | 1.25 | End Chamfer Angle (ECA) | 3 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1" | Tool Type | Turning Toolholders-Standard |
| Inscribed Circle Diameter (IC) | 3/8" | Style | SVJBL16-3D |
| Cutting Direction (HAND) | Left Hand | Insert Style | 6.00 |
| Master Insert Identification (MIID) | VC_T 33_ |
• Style J • Negative 3° Cutting Edge Angle for 5° Positive 35° Diamond VB_T Inserts
