Brand: Dorian

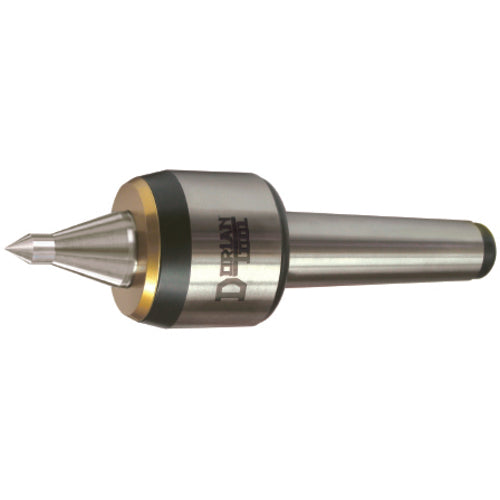

Dorian FL3248282 PLC-CNC-INT-MT3-SET MMP-MT3 - CNC High Speed Heavy Duty Live Center
SKU: FTS-FL3248282
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
FL3248282 PLC-CNC-INT-MT3-SET MMP-MT3 - CNC High Speed Heavy Duty Live CenterFull Description
| Type | CNC High Speed Heavy Duty Live Center | Accuracy | 0.00015" |
| Taper Type | Morse Taper | Weight | 2.20 lbs |
| Point Style | CNC | Model No | PLC-CNC-INT-MT3-SET MMP-MT3 |
| Head Diameter | 2.17" | Head Length | 1.85" |
| Maximum RPM | 7,000 | Point Length | 1.65" |
| Mount | 3 MT | Tip Diameter | 0.39" |
| Point Diameter | 0.87" | Style | 60° Extended Medium Slim Steel or Carbide Point |
| Shank Diameter | 3 MT | Maximum Workpiece Weight | 1,386 lbs |
| Thrust Load | 1,144 lbs |
•CNC High Speed Heavy Duty Live Centers.•Precise Concentricity T.I.R. 0.0001.•High Speed Precision Bearings.•Three Permanently Lubricated Bearings.•Sealed with Lip Seal and Locked with a Flange Shield.•Chromium-Molybdenum Alloy Steel.•Surface Heat Treated to 62 Rc and Precision Ground.
