Brand: DESTACO
DESTACO CPI-75PF-B-45 FF/PF - ROUND FLATFOOT VACUUM CUP 30FF 45 DURO W/502-3819 INS
SKU: DE-STA-CO-CPI-75PF-B-45
MPN:

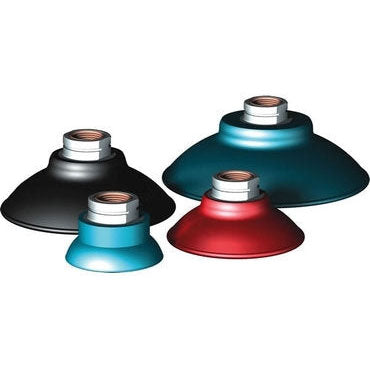

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the ultimate holding power with DESTACO CPI-75PF-B-45 FF/PF - ROUND FLATFOOT VACUUM CUP 30FF 45 DURO W/502-3819 INS. These flatfoot vacuum cups were designed for moderately flat to medium contour, dry surfaces and offer an impressive holding capacity of 13.6kg (30 lbs) horizontally and 27.2kg (60 lbs) vertically. Made with durable and high-quality Nitrile Durometer 45 (Red) material, these cups are lightweight at only 57g (2 oz) and have a diameter of 76.2mm (3.000 in). Upgrade your automation handling capabilities today!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-75PF-B-45 FF/PF - ROUND FLATFOOT VACUUM CUP 30FF 45 DURO W/502-3819 INS
Product Details
Flatfoot vacuum cups are best used on moderately flat to medium contour, dry surfaces
Holding Capacity - Horizontal Dry (kg) | 13.6 |
Holding Capacity - Horizontal Dry (lbf) | 0.0 |
Holding Capacity - Horizontal Wet (kg) | 5.9 |
Holding Capacity - Horizontal Wet (lbf) | 0.0 |
Holding Capacity - Vertical Lift (kg) | 27.2 |
Holding Capacity - Vertical Lift (lbf) | 60 |
Weight (g) | 57.0 |
Weight (oz) | 2.0 |
Diameter (mm) | 76.2 |
Diameter (in) | 3.000 |
Material | Nitrile |
Durometer | 45 (Red) |
Mount | 3/8 G |
Temperature Range | 15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C) |
Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
Shape | Round |
Product Type | Flatfoot |
Cup Size | 75 mm |
Product Series Description | Nitrile Rubber |
