Brand: DESTACO

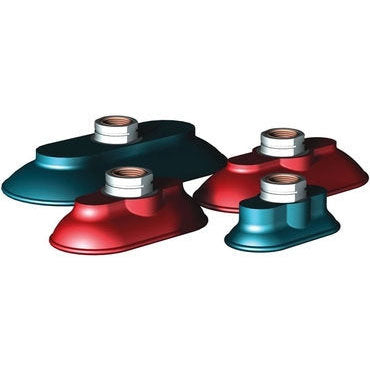

DESTACO CPI-50-100PF-C-45 CUP FF 50MM X 100MM C-MNT 45DURO
SKU: DE-STA-CO-CPI-50-100PF-C-45
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the power of DESTACO CPI-50-100PF-C-45 CUP FF 50MM X 100MM C-MNT 45DURO! These oval flatfoot vacuum cups are designed for maximum efficiency on moderately flat to medium contour surfaces. Trust in our catalog of High-Performance Automation, Workholding, & Containment Solutions to provide the best in holding capacity - 8.2 kg (18.0 lbf) horizontally dry, 2.7 kg (6.0 lbf) horizontally wet, and a whopping 19 kg (42 lbf) for vertical lifting. With a lightweight yet strong design and high-quality Nitrile Durometer material, these cups are perfect for any task. Join the thousands who have already experienced the convenience and effectiveness of our 1.25" square mount suction cups. Order now and feel the difference!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-50-100PF-C-45 CUP FF 50MM X 100MM C-MNT 45DURO
Oval flatfoot vacuum cups are best used on moderately flat to medium contour, dry surfaces Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
| Holding Capacity - Horizontal Dry (kg) | 8.2 |
| Holding Capacity - Horizontal Dry (lbf) | 18.0 |
| Holding Capacity - Horizontal Wet (kg) | 2.7 |
| Holding Capacity - Horizontal Wet (lbf) | 6.0 |
| Holding Capacity - Vertical Lift (kg) | 19 |
| Holding Capacity - Vertical Lift (lbf) | 42 |
| Weight (g) | 119.0 |
| Weight (oz) | 4.2 |
| Length (mm) | 101.6 |
| Length (in) | 4.000 |
| Width (mm) | 50.8 |
| Width (in) | 2.000 |
| Material | Nitrile |
| Durometer | 45 (Red) |
| Mount | 1.25" Square |
| Temperature Range | 15-59 Sec: -20‚° to 250‚°F (-29‚° to 121‚°C) 1-5 Min: 15‚° to 180‚°C (-9‚° to 82‚°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Oval |
| Product Type | Flatfoot |
| Cup Size | 50 x 100 mm |
| Cup Size | 1.97 x 3.93 in |
| Product Series Description | Nitrile Rubber |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | vacuum cups |
