Brand: DESTACO
DESTACO CPI-153FF-C-45 FF/PF OVAL - OVAL FLATFOOT CUP FF 1.5in. X 3in. C-MT RED
SKU: DE-STA-CO-CPI-153FF-C-45
MPN:
In-Stock: 6
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO CPI-153FF-C-45 FF/PF OVAL - OVAL FLATFOOT CUP FF 1.5in. X 3in. C-MT RED! This oval flatfoot vacuum cup is perfect for moderately flat to medium contour, dry surfaces. With a holding capacity of 6.8kg/15.0lbf (horizontal dry), 2.3kg/5.0lbf (horizontal wet), and 8.2kg/18lbf (vertical lift), this cup can handle all your lifting needs! Weighing just 35g/1.2oz, and measuring 76.2mm/3.000in (length) and 38.1mm/1.500in (width), it is lightweight and compact. Made with high-quality nitrile durometer 45 (red), and featuring a 1.25" square mount, this cup is durable and reliable!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description

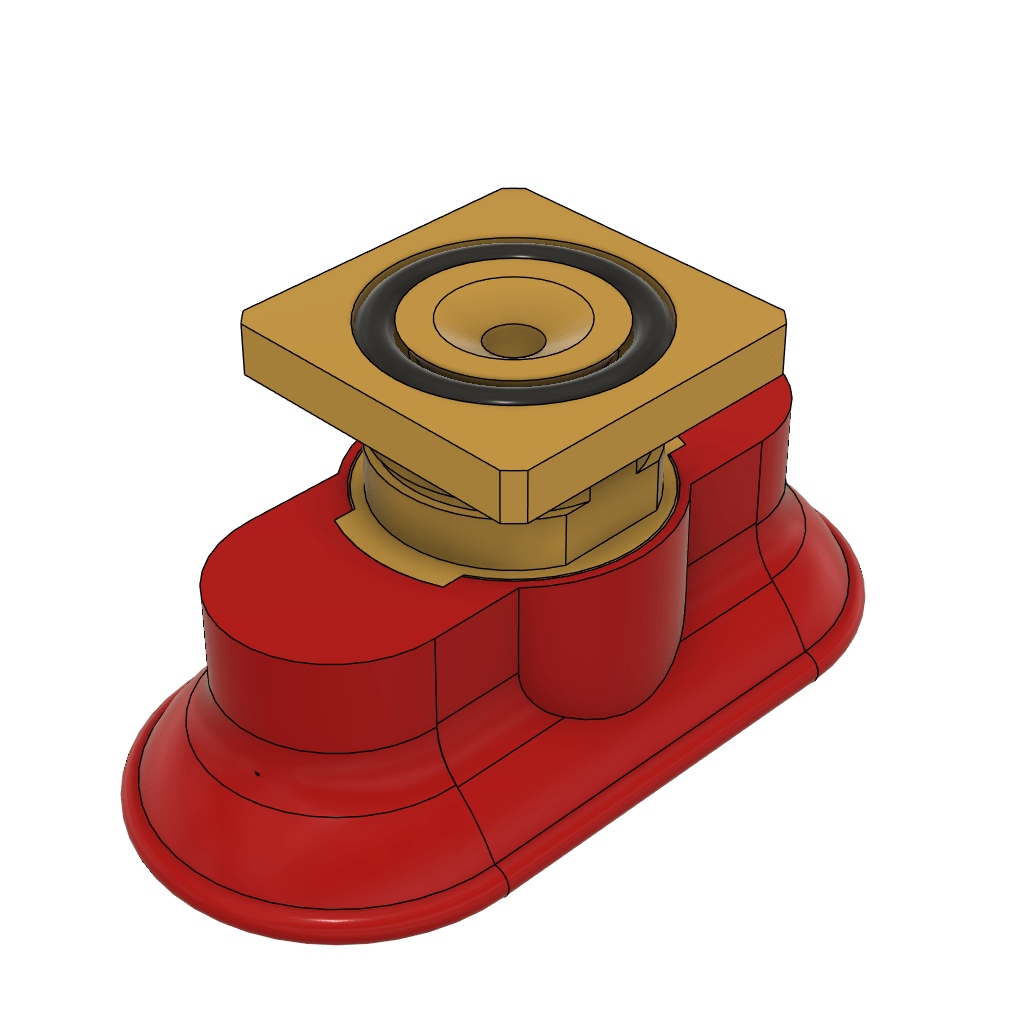

DESTACO CPI-153FF-C-45 FF/PF OVAL - OVAL FLATFOOT CUP FF 1.5in. X 3in. C-MT RED
Product Details
Oval flatfoot vacuum cups are best used on moderately flat to medium contour, dry surfaces
Holding Capacity - Horizontal Dry (kg) | 6.8 |
Holding Capacity - Horizontal Dry (lbf) | 15.0 |
Holding Capacity - Horizontal Wet (kg) | 2.3 |
Holding Capacity - Horizontal Wet (lbf) | 5.0 |
Holding Capacity - Vertical Lift (kg) | 8.2 |
Holding Capacity - Vertical Lift (lbf) | 18 |
Weight (g) | 35.0 |
Weight (oz) | 1.2 |
Length (mm) | 76.2 |
Length (in) | 3.000 |
Width (mm) | 38.1 |
Width (in) | 1.500 |
Material | Nitrile |
Durometer | 45 (Red) |
Mount | 1.25" Square |
Temperature Range | 15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C) |
Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
Shape | Oval |
Product Type | Flatfoot |
Cup Size | 1.50 x 3.00 in |
Product Series Description | Nitrile Rubber |
