Brand: Sandvik Coromant

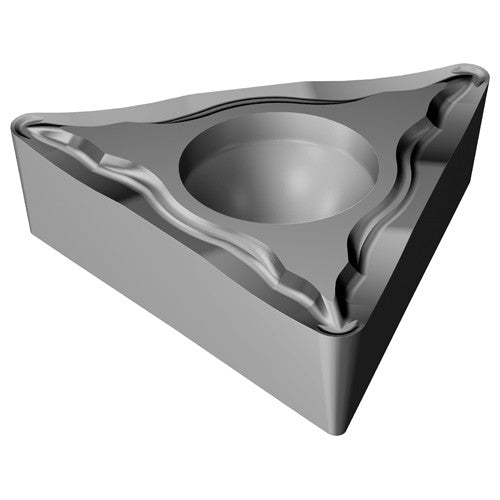

Sandvik Coromant FF87TCMT67446 TCMT 2152 UM H13A, 0.032" Corner Radius, 0.094" Thick, 1/4" Inscribed Circle, Uncoated, Triangle, Turning Indexable Insert
SKU: FTS-FF87TCMT67446
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
FF87TCMT67446 TCMT 2152 UM H13A, 0.032 Corner Radius, 0.094 Thick, 1/4 Inscribed Circle, Uncoated, Triangle, Turning Indexable InsertFull Description
| Applicable Material | | Hi-Temp Alloys|Stainless Steel|Steel | | Fixing Hole Diameter (D1) | 0.11" |
| Insert Style | TCMT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.032" | Cutting Direction (HAND) | Neutral |
| Insert Size | 2152 | Chip Breaker Type | UM |
| Insert Thickness (S) | 0.094" | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/4" | Shape | Triangle |
| Cutting Edge Material | Carbide | Series/List # | TCMT -UM |
| Coating | TiCN|TiN | Model No | TCMT2152-UM |
| Grade | 235 |
