Brand: Sandvik Coromant

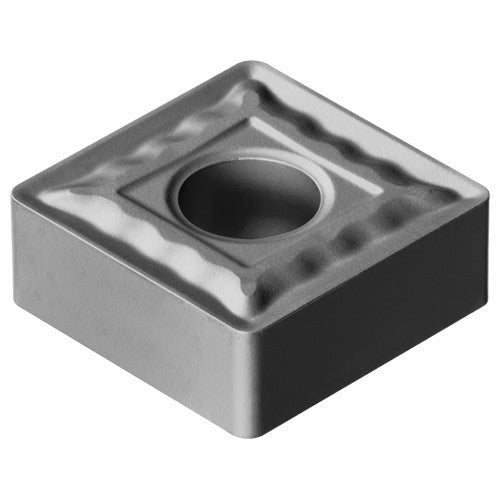

Sandvik Coromant FF87SNMG66734 SNMG 434 QM H13A, 0.062" Corner Radius, 0.187" Thick, 1/2" Inscribed Circle, Uncoated, Square, Turning Indexable Insert
SKU: FTS-FF87SNMG66734
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
FF87SNMG66734 SNMG 434 QM H13A, 0.062 Corner Radius, 0.187 Thick, 1/2 Inscribed Circle, Uncoated, Square, Turning Indexable InsertFull Description
| Applicable Material | | Cast Iron|Stainless Steel|Steel|Non-Ferrous Material | | Fixing Hole Diameter (D1) | 0.203" |
| Insert Style | SNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 0.032" | Cutting Direction (HAND) | Neutral |
| Insert Size | 432 | Chip Breaker Type | PM |
| Insert Thickness (S) | 0.187" | Quantity | 1 |
| Inscribed Circle Diameter (IC) | 1/2" | Shape | Square |
| Cutting Edge Material | Carbide | Series/List # | SNMG 432-PM |
| Coating | TiCN|Al2O3|TiN | Model No | SNMG432-PM |
| Grade | 4305 |
