Brand: Sandvik Coromant

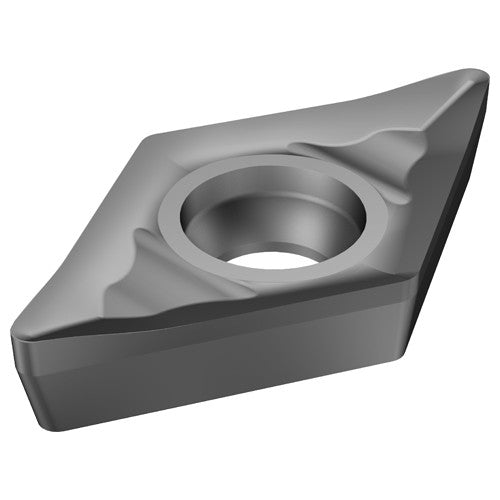

Sandvik Coromant FF87DCGX69614 DCGX 2151 AL H10, 0.016 Corner Radius, 0.094 Thick, 1/4 Inscribed Circle, Uncoated, Turning Indexable Insert
SKU: FTS-FF87DCGX69614
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
FF87DCGX69614 DCGX 2151 AL H10, 0.016" Corner Radius, 0.094" Thick, 1/4" Inscribed Circle, Uncoated, Turning Indexable InsertFull Description
| Applicable Material | | Cast Iron|Hi-Temp Alloys|Non-Ferrous Material | | Fixing Hole Diameter (D1) | 0.11" |
| Insert Style | DCGX | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.016" | Cutting Direction (HAND) | Neutral |
| Insert Size | 2151 | Chip Breaker Type | AL |
| Insert Thickness (S) | 0.094" | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/4" | Shape | 55° Diamond |
| Cutting Edge Material | Carbide | Series/List # | DCGX -AL |
| Coating | Uncoated | Model No | DCGX2151-AL |
| Grade | H10 |
