Brand: Sandvik Coromant

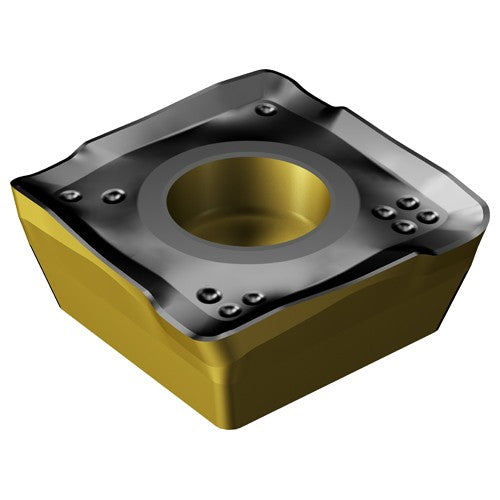

Sandvik Coromant FF8749052629 490R140408MPM 4220 Insert
SKU: FTS-FF8749052629
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
FF8749052629 490R140408MPM 4220 InsertFull Description
| Applicable Material | Cast Iron|Hard Materials|Steel | Grade | 4220 |
| Cutting Edge Length (L) | 10.3 mm | Shape | Square |
| Corner Radius (RE) | 0.8 mm | Insert Style | 490R-140408M-PM |
| Depth of Cut Maximum (APMX) | 0.394" | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 13.8 mm | Chip Breaker Type | PM |
| Insert Thickness (S) | 3.9 mm | Hole Diameter | 4.1 mm |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | TiCN|Al2O3|TiN |
